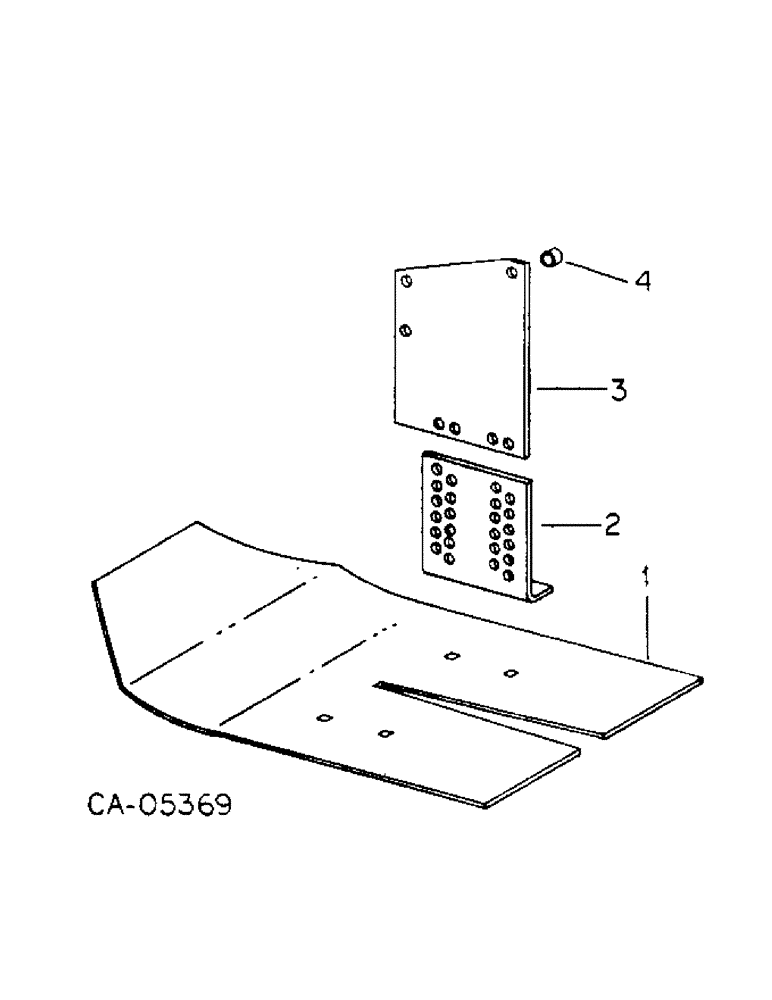

Запчасти Case IH 295 (Z-15[A]) - GAUGE SHOE ATTACHMENT, QUANTITIES SHOWN ARE PER UNIT

1

125535C1

SHOE

gauge

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1 plow type 1

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16 type 5

4шт.

2

128715C1

SUPPORT, gauge shoe

2шт.

20317R1

BOLT, 7/16 x 1-1/8 type 1

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

4шт.

3

125534C1

BAR, support

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2 x 7-1/2 type 5

2шт.

21211R1

WASHER

.781 x 1.500 x .164

4шт.

366112R1

WASHER

.781 x 1.250 x .105

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

231-1448

NUT,1/2"-13, GB

1/2 p/t lock type 5

1шт.

4

472104R1

BUSHING

2шт.
