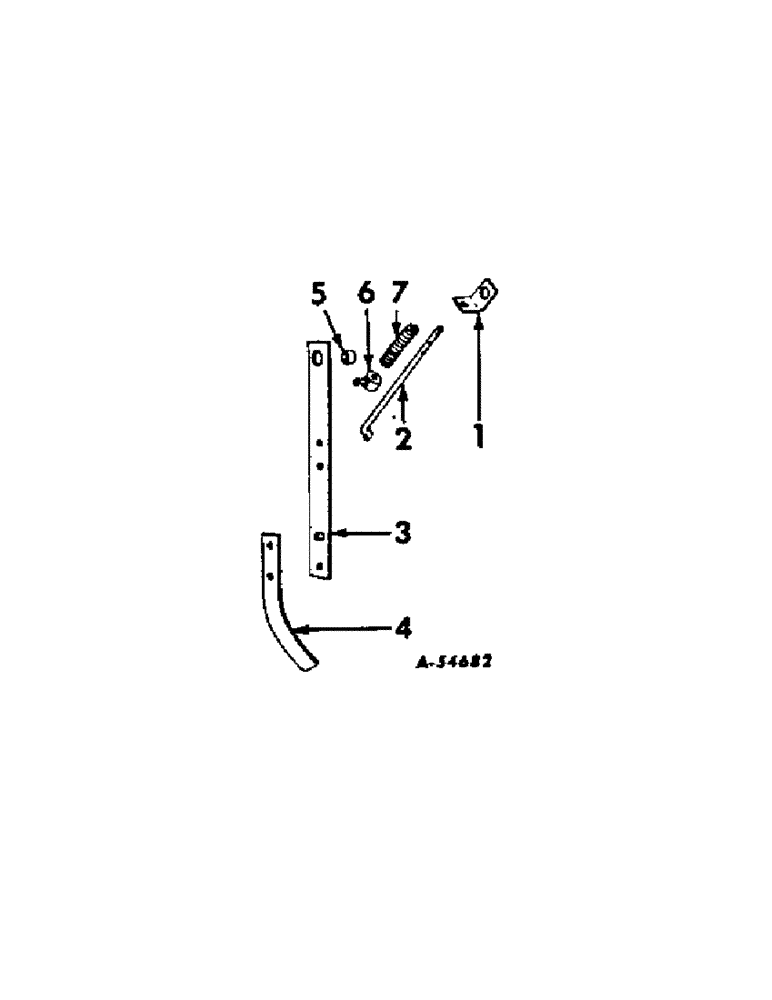

Запчасти Case IH 295 (Z-07) - COVERING BLADE ATTACHMENT, MACHINES BUILT 1969 TO 1974

1

526248R1

ANGLE

BRACKET, pressure rod

4шт.

21740R1

WASHER

17/32 x 1-1/2 x 16 ga C-Z

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

8шт.

2

526249R1

ROD

pressure

4шт.

21628R1

PIN

1/8 x 3/4 C-Z self opening cot.

4шт.

3

493113R2

ARM

covering blade

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

4

621582R1

SUPPORT

BLADE, LH

2шт.

4

621583R1

BLADE

RH

2шт.

5

482469R1

BUSHING

covering blade arm

4шт.

6

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW

4шт.

142671

SET SCREW

SCREW, 5/16-18 x 1/2 C-Z sq-hd cup-pt set

4шт.

7

11100D

SPRING

pressure

4шт.
