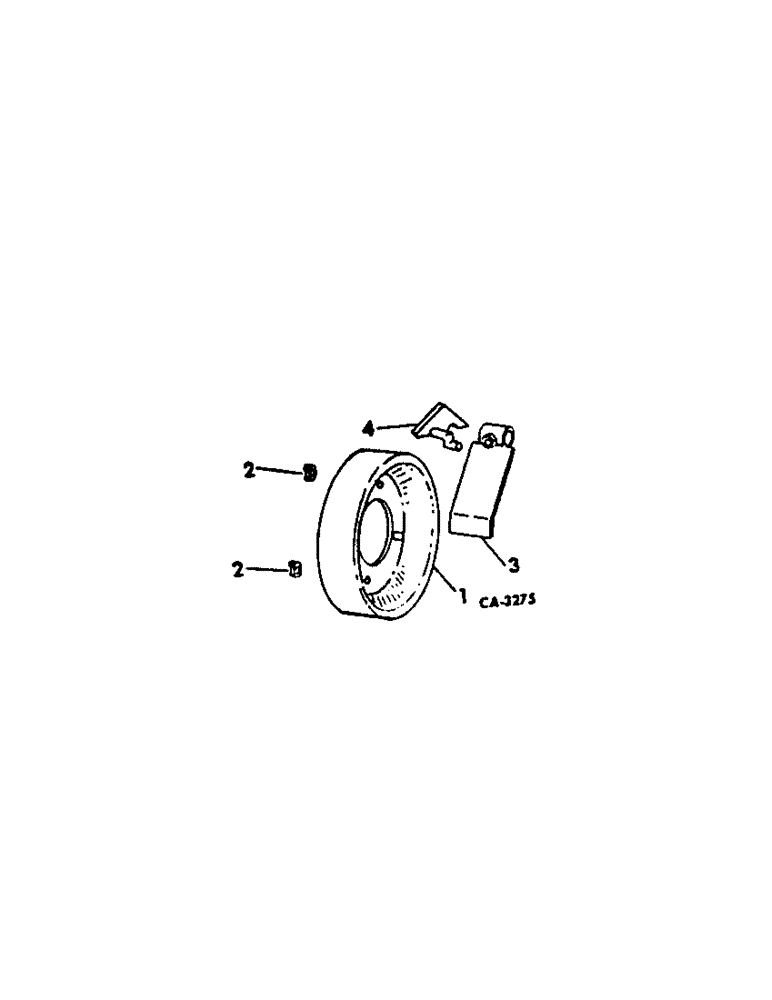

Запчасти Case IH 295 (Z-06[B]) - DEPTH BAND AND SCRAPER ATTACHMENT, QUANTITIES SHOWN ARE PER UNIT

1

542555R2

DRUM

BAND, depth, 11 in. OD

2шт.

1

461915R1

DRUM

BAND, depth, 11-3/8 in. OD

2шт.

1

493539R1

DRUM

BAND, depth, 9-1/2 in. OD

2шт.

1

493540R2

DRUM

BAND, depth, 10-1/2 in. OD

2шт.

1

524670R1

DRUM

BAND, depth, 9-7/8 in. OD

2шт.

1

524671R1

DRUM

BAND, depth, 8-3/8 in. OD

2шт.

492752R1

BOLT,Carriage, 3/8" - 16 x 1 1/4"

special crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

492751R1

WASHER

disk

4шт.

3

492761R1

BLADE

ASSY, depth band LH

1шт.

3

492762R1

BLADE

ASSY, depth band RH

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

(Not used)

1шт.

All depth bands on this page are 1.6 inches wide.

1шт.

Per print. Jds Cam 10/1/97

1шт.
