(Z-06[A]) - CHAIN COVERINGS ATTACHMENT, QUANTITIES SHOWN ARE PER UNIT

Запчасти Case IH 295 (Z-06[A]) - CHAIN COVERINGS ATTACHMENT, QUANTITIES SHOWN ARE PER UNIT

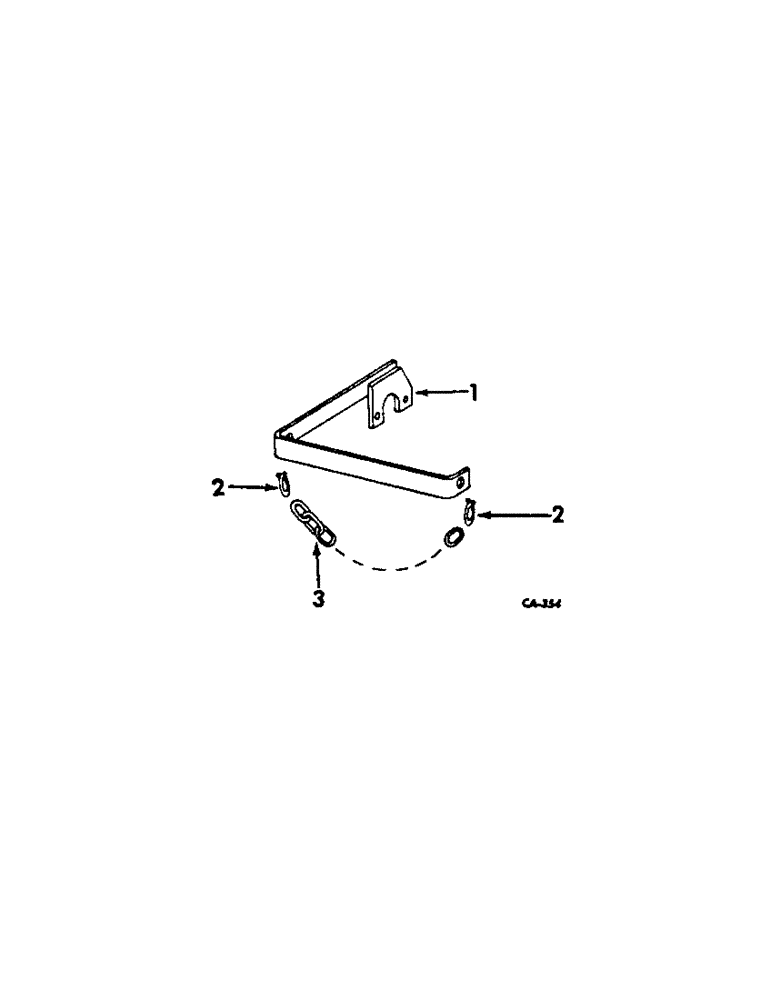

Схема запчастей Case IH 295 - (Z-06[A]) - CHAIN COVERINGS ATTACHMENT, QUANTITIES SHOWN ARE PER UNIT
3
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

493114R1

FRAME ASSY, covering LH

1шт.

1

493115R1

FRAME ASSY, covering RH

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 C-Z cap

4шт.

2

524678R1

LINK, connecting

4шт.

3

493118R1

CHAIN, covering

2шт.

Выбрано товаров: 5
