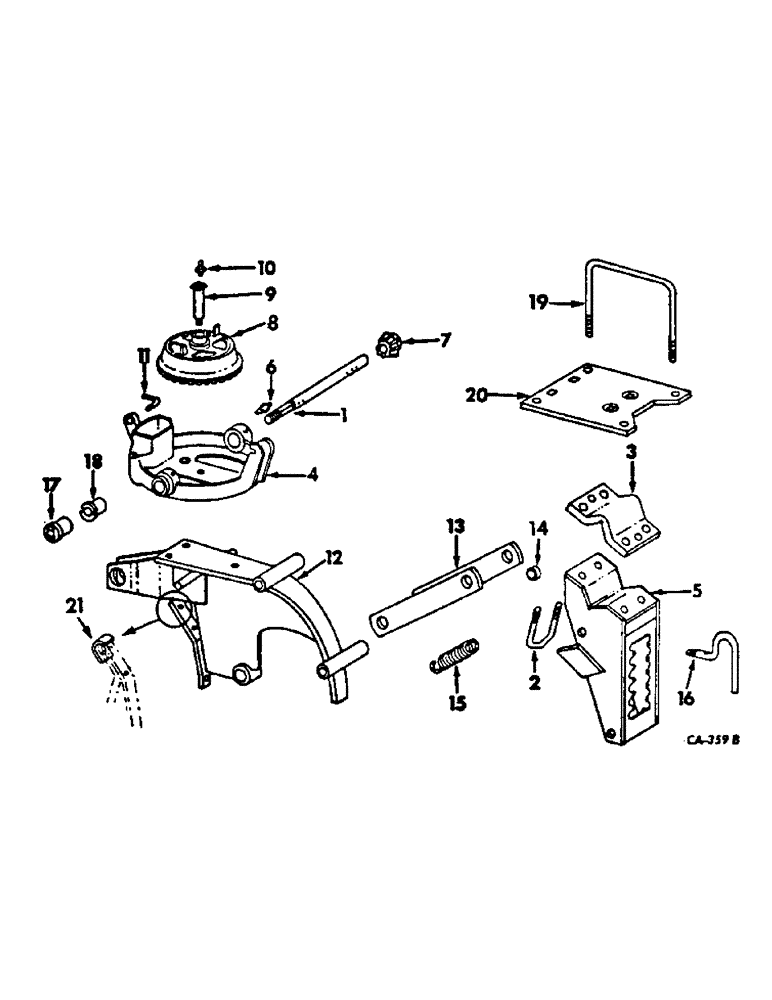

Запчасти Case IH 295 (Z-03) - HOPPER DRIVE AND PARALLEL LINKAGE, QUANTITIES SHOWN ARE PER UNIT

1

541318R1

SHAFT

drive gear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

542439R1

WASHER

SPACER, feed shaft, for left hand drive

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga, for left hand drive

1шт.

542438R1

SPRING WASHER

finger spring, for left hand drive

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

524686R3

BOLT,U, 1/2" - 13 x 3.60"

U-BOLT, tool bar

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

524654R2

CLAMP

CAP, tool bar clamp

1шт.

4

541319R1

BRACKET

hopper

1шт.

5

471117R93

BRACKET ASSY, tool bar

1шт.

6

66584D

FITTING

3/16 STR drive type

2шт.

7

492758R1

GEAR

PINION, bevel, 10 teeth

1шт.

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

8

472121R1

GEAR WHEEL

GEAR, bevel, 40 teeth

1шт.

9

493085R1

STUD,1/2" - 13 x 2 23/64"

bevel gear

1шт.

10

126098

FITTING

5/16 STR drive type

1шт.

11

541320R1

BOLT,L, 5/16" - 18 x 1.72"

L-BOLT, bent hopper hold down

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

129-419

WING NUT,5/16"-18

NUT, hopper hold down

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

12

493087R3

BRACKET ASSY

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

493099R1

LINK

AGE ASSY

2шт.

22471R1

BOLT,Hex, 1/2" - 13 x 6 3/4", Gr 5

1/2 x 6-3/4 znd hex-hd mach

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

4шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp hex. nylon insert

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

8шт.

14

493102R2

BUSHING,13.11mm ID x 19.07mm OD x 11.18mm L

linkage

8шт.

15

524660R1

VALVE SPRING

SPRING, pressure

2шт.

16

471119R1

HOOK

CLIP, spring

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

17

541321R1

ADAPTER

sprocket bearing

1шт.

18

541322R1

BUSHING,0.635" ID x 1.22" OD x 1.47"

feed shaft

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

19

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, for mounting to 326 carrier

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

8шт.

20

542403R1

PLATE, planter attaching, for mounting to 326 carrier

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

19060R1

CARRIAGE BOLT,#3, 1/2" - 13 x 1 1/2", Gr 2

BOLT, 1/2 x 1-1/2 znd no. 3 plow

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

21

547326R1

STOP, support

1шт.
