Запчасти Case IH 284 (A-06) - PLANTER ATTACHING UNIT, PARTS FOR NO. 284 PLANTER

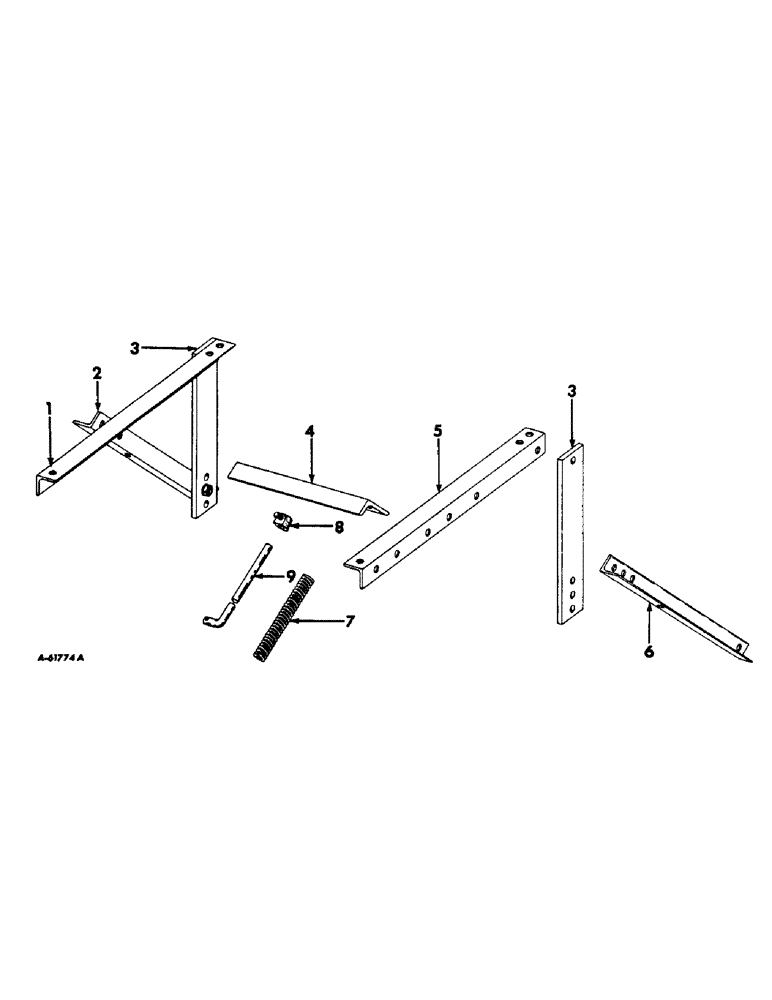

Схема запчастей Case IH 284 - (A-06) - PLANTER ATTACHING UNIT, PARTS FOR NO. 284 PLANTER
1
8
3
2
6
7
4
9
3
5

Артикул

Название

Примечание

Количество

1

463192R3

ANGLE, support LH

1шт.

NUT, 7/16

2шт.

SCREW, 7/16 x 1-1/4 cap

2шт.

WASHER, 7/16 lock

2шт.

2

463194R2

BRACE, support angle LH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

3

463196R1

STRAP, hitch

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

1шт.

WASHER, 1/2 lock

2шт.

4

463197R2

SUPPORT, pressure rod

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

WASHER, 1/2 lock

2шт.

5

463193R3

ANGLE, support RH

1шт.

NUT, 7/16

2шт.

SCREW, 7/16 x 1-1/4 cap

2шт.

WASHER, 7/16 lock

2шт.

6

463195R2

BRACE, support angle RH

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

7

524997R1

SPRING, pressure rod

1шт.

8

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod, 1960 and since

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

8

5326X

COLLAR

W/SET SCREW, pressure rod, 1960

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

9

464277R1

GUIDE

ROD, pressure, 1960 and since

1шт.

PIN, 3/16 x 1-1/4 self-opening cotter

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

2шт.

9

524916R1

ROD, pressure, 1960

1шт.

PIN, 3/16 x 1 self-opening cot.

2шт.

WASHER, 17/32 x 1-1/4 x 11 ga

2шт.

Выбрано товаров: 32
