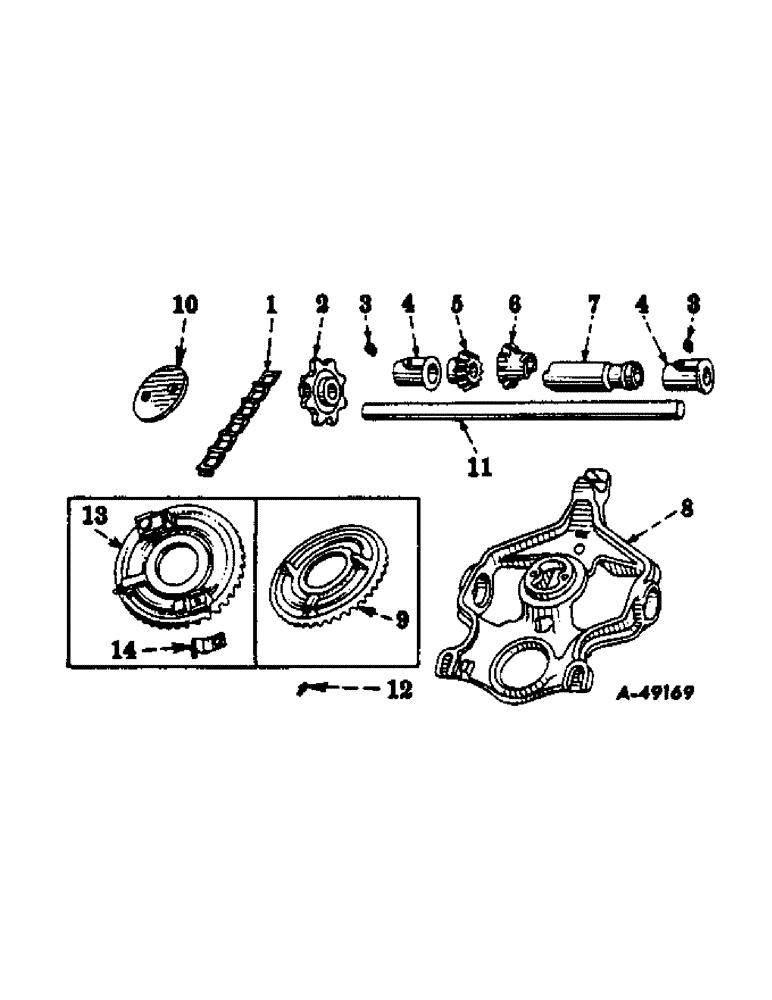

Запчасти Case IH 284 (A-05) - HOPPER BRACKET AND FEED SHAFT

1

CHAIN, drive, use 33 no. 32 steel links from 10 ft roll CS-32

1шт.

2

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, 8T

1шт.

3

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

PO2507

BEARING

feed shaft

1шт.

5

622122R2

GEAR

PINION, 12T, order 471196R1

1шт.

5

471196R1

GEAR WHEEL

PINION, 12T

1шт.

6

622121R2

PINION

10T

1шт.

7

622123R2

BLOCK DRIVER

SLEEVE, hopper driving

1шт.

8

462500R2

FRAME

BRACKET, hopper, 1959 and since

1шт.

8

621705R4

BRACKET

hopper, Serial Range: 1953-1959

1шт.

BOLT, 5/16 x 2-1/4 C-Z sq-hd mach

2шт.

BOLT, 1/2 x 2-1/4 sq-hd mach

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

2шт.

WASHER, 1/2 lock

2шт.

9

622120R21

GEAR

W/FITTING, double ring, 1957 and since

1шт.

10

462502R1

RETAINER

gear, 1959 and since

1шт.

10

621709R1

WASHER, gear retainer, Serial Range: 1953-1959

1шт.

NLS

NO LONGER SERVICED

1/4 x 5/8 slt-fl-hd mach

2шт.

WASHER, 1/4 external-tooth lock

2шт.

11

523184R1

SHAFT

feed

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

33405A

WASHER

WASHER, 25/32 x 1-1/8 x 22 ga

3шт.

12

110161

FITTING, 3/16 drive type straight lubrication

1шт.

13

524400R11

GEAR W/FITTING, double ring, Serial Range: 1958-1960

1шт.

14

524401R3

DRAWBAR CLAMP

SPRING, ring gear drive, Serial Range: 1958-1960

1шт.

SCREW, 1/4 x 3/8 cap

1шт.
