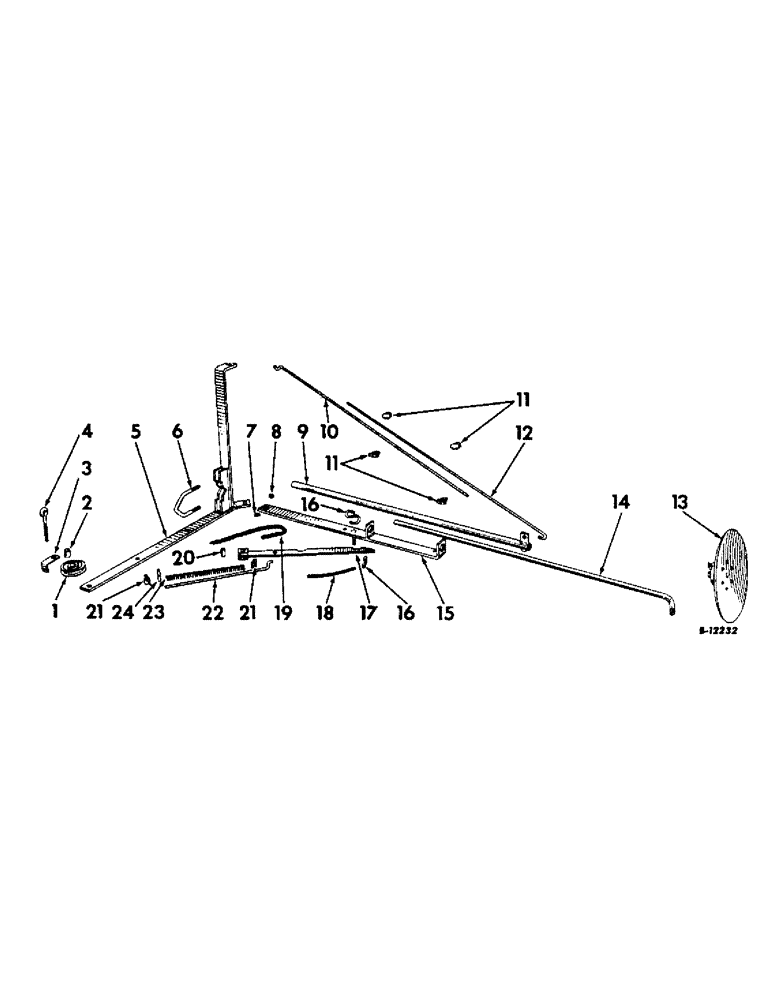

Запчасти Case IH 284 (A-49) - SEMI-AUTOMATIC MARKER, MARKER RODS AND CHAINS

1

527206R1

SHEAVE

1шт.

2

527207R1

BUSHING, sheave

1шт.

3

527208R1

RETAINER, chain

1шт.

4

527222R1

EYEBOLT

1шт.

102637

NUT,1/2"-13, G5

2шт.

5

527201R92

SUPPORT ASSEMBLY, marker LH

1шт.

5

527202R92

SUPPORT ASSEMBLY, marker RH

1шт.

6

525018R11

BOLT

U-BOLTS W/NUTS

1шт.

NUT, 5/8

1шт.

WASHER, 21/32 x 1-1/2 x 16 ga

1шт.

7

PO2193

CLAMP

2шт.

15006R1

BOLT (SPREADER)

BOLT, 1/4 x 1 sq-nk crg

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

8

527216R1

BUSHING

marker pivot

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8 x 1-3/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

102639

NUT,5/8"-11, G5

1шт.

9

527214R11

PIPE ASSEMBLY, marker

1шт.

10

527218R1

TRUSS, upper

1шт.

11

5938

CLAMP, truss

1шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

12

527217

TRUSS, lower

1шт.

13

620446R91

DISK ASSEMBLY W/HUB AND BEARING, used with disk marker

1шт.

14

525006R1

SHAFT, marker, used with disk marker

1шт.

14

525008R1

SHAFT, marker, used with shoe marker

1шт.

15

527219R11

ARM ASSEMBLY, pipe adjusting

1шт.

110452

SET SCREW

1/2 x 1-1/2 cup-pt sq-hd set

1шт.

16

PO12729

HOOK

S-HOOK

1шт.

17

527209R11

LATCH ASSEMBLY

1шт.

18

ROPE, marker 1/4 sisal 16 ft., purchase locally

1шт.

18

ROPE, marker 1/4 sisal 40 ft., purchase locally

1шт.

19

527226R91

CHAIN, lift no. 2 Elwel machine chain twist link 26 ft. 0 in.

1шт.

19

462465R1

CHAIN, lift no. 2 Elwel machine chain twist link 30 ft. 0 in.

1шт.

20

527211R1

BUSHING

latch arm

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

102637

NUT,1/2"-13, G5

1шт.

21

517951R11

WEAR PAD

COLLAR ASSEMBLY, set

1шт.

105111

FITTING

SCREW, 5/16 x 3/8 cup-pt sq-hd set

1шт.

22

527212R1

ROD, spring

1шт.

23

PO189

SPRING, compression

1шт.

24

527213R1

EYE, swivel

1шт.

13066R1

Pin, Split (Cotter), 1/8" x 1" 1/8" x 1"

1шт.

665434R1

SPACER

2шт.

Required when semi-automatic marker is used in conjunction w/F656 tractor.

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

2шт.

Required when semi-automatic marker is used in conjunction w/F656 tractor.

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

Required when semi-automatic marker is used in conjunction w/F656 tractor.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Required when semi-automatic marker is used in conjunction w/F656 tractor.

1шт.

102637

NUT,1/2"-13, G5

2шт.

Required when semi-automatic marker is used in conjunction w/F656 tractor.

1шт.
