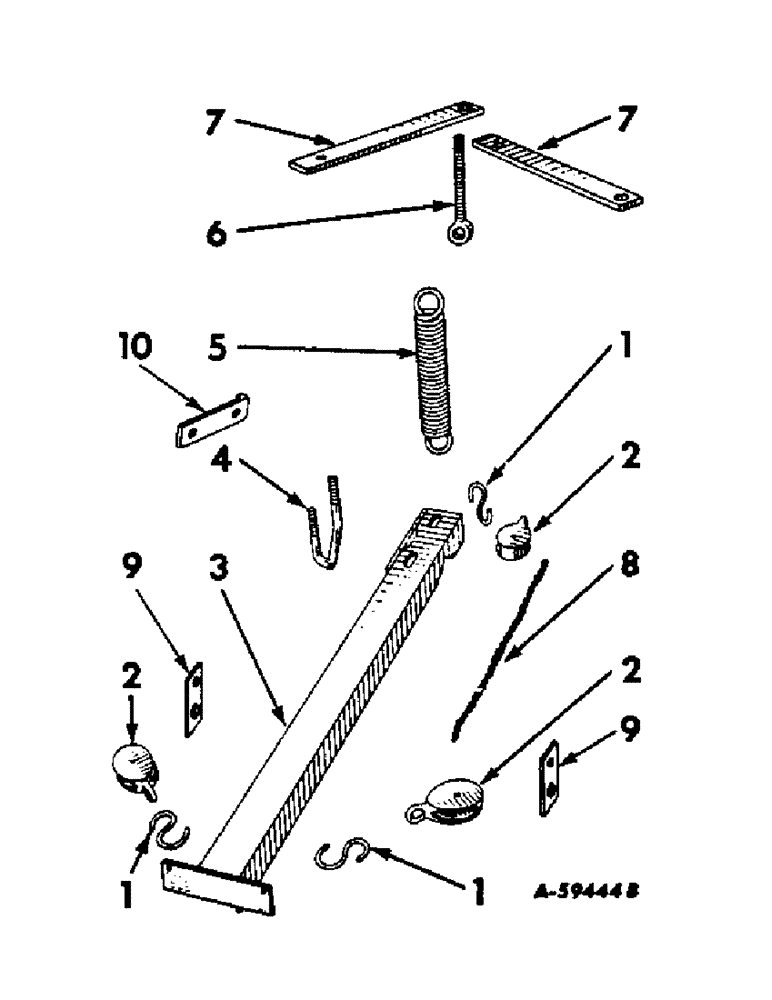

Запчасти Case IH 284 (A-48) - SEMI-AUTOMATIC MARKER, CENTER SUPPORT

1

520841R1

S-HOOK

1шт.

2

527225R91

PULLEY

1шт.

3

527196R12

SUPPORT ASSEMBLY, center pulley

1шт.

4

525018R11

BOLT

U-BOLT W/NUTS

1шт.

NUT, 5/8

2шт.

WASHER, 21/32 x 1-1/2 x 16 ga

2шт.

5

462461R1

SPRING, marker lift chain

1шт.

6

527200R12

EYEBOLT

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

2шт.

425-1012

NUT,3/4"-10, G5

3/4

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

7

527199R2

ANCHOR, spring

1шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

527226R91

CHAIN, lift no. 2 Elwel machine chain twist link 26 ft. 0 in.

1шт.

9

462463R1

ANCHOR, spring

1шт.

BOLT W/NUT, 5/8 x 2-1/4 mach

1шт.

WASHER, 5/8 lock

1шт.

10

462464R1

ANCHOR, pulley

1шт.

BOLT W/NUT, 3/4 x 3 mach

1шт.

WASHER, 3/4 lock

1шт.
