Запчасти Case IH 284 (A-42) - MARKER, TWO-ROW

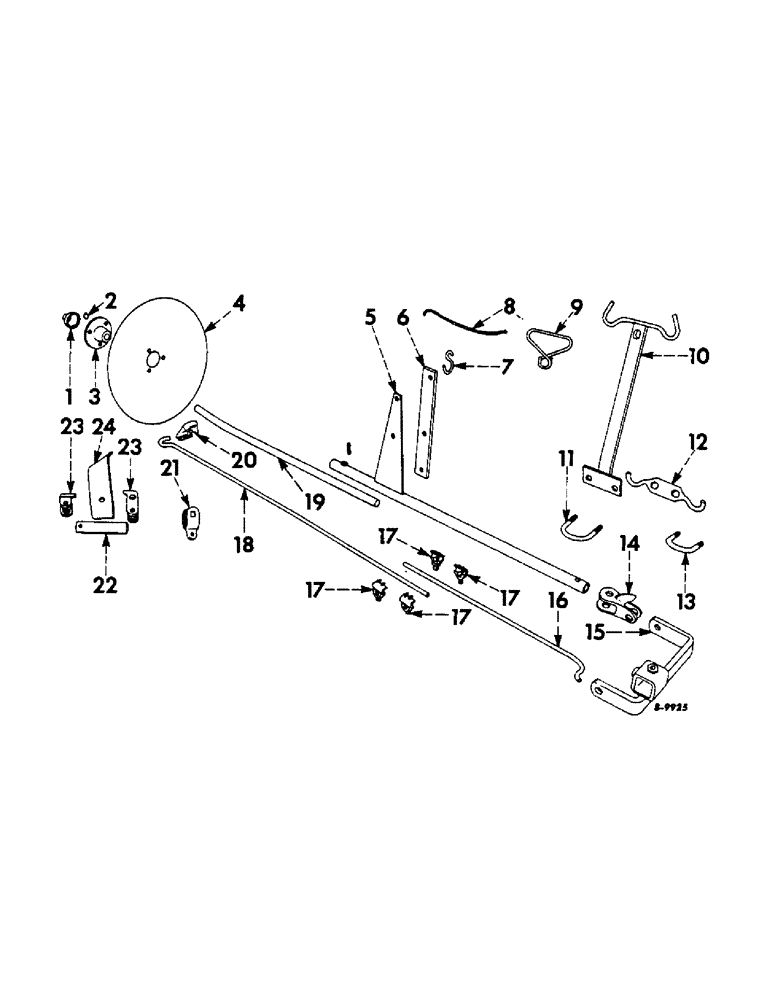

Схема запчастей Case IH 284 - (A-42) - MARKER, TWO-ROW
17
3
8
15
5
14
11
4
1
16
17
17
23
22
2
13
21
23
19
9
20
24
12
10
7
18
17
6

Артикул

Название

Примечание

Количество

1

3786

BEARING WASHER

WASHER, hub

1шт.

2

110161

FITTING, 3/16 drive type straight lub.

1шт.

3

PO1752A

HUB, disk

1шт.

4

S3946

DISK, marker 14 in.

1шт.

RIVET, 5/16 x 7/8 rd-hd

3шт.

4

PO16198

DISK W/HUB

1шт.

5

519420R21

PIPE

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

6

524968R1

EXTENSION, lift plate

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

7

PO12729

HOOK

extension

5шт.

8

ROPE, marker, 1/4 x 24 ft., purchase locally

1шт.

9

PO15110A

HANDLE, rope

1шт.

10

513720R92

BRACKET, rope, for Farmall Super C, 100 and 230 tractors

1шт.

11

512901R11

U-BOLT W/NUTS, rope hanger, for Farmall Super C, 200 and 230 tractors

1шт.

NUT, 7/16

2шт.

WASHER, 7/16 lock

2шт.

12

PO23502B

HANGER, rope, for Farmall 300, 350, 400 and 450 tractors

1шт.

12

526203R1

HANGER, rope, for Farmall 460 and 560 tractors

1шт.

13

526197R11

U-BOLT W/NUTS, rope hanger, for Farmall 460 and 560 tractors

1шт.

NUT, 3/8

2шт.

WASHER, 3/8 lock

2шт.

13

520901R11

U-BOLT W/NUT, rope hanger, for Farmall 300, 350, 400 and 450 tractors

1шт.

NUT, 7/16

2шт.

WASHER, 7/16 lock

2шт.

14

PO3162

KNUCKLE, attaching bracket

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

PIN, 3/16 x 1 self-opening cot.

1шт.

N62023

PIN, 5/8 x 1-7/16 dld-std-hd

1шт.

15

519303R91

BRACKET, left attaching, Serial Range: 1954-1958

1шт.

15

519304R91

BRACKET, right attaching, Serial Range: 1954-1958

1шт.

15

524977R91

BRACKET, left attaching

1шт.

15

524978R91

BRACKET, right attaching

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

4шт.

16

PO27974

ROD, inner pull

1шт.

17

5938

CLAMP, rod

1шт.

BOLT W/ NUT, 3/8 x 1-1/2 crg

1шт.

18

PO26333

ROD, outer pull

1шт.

19

519418R1

AXLE, disk

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.

20

PO1428

ANCHOR, pull rod

1шт.

21

4766

TUBE

COLLAR, pull rod

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

1шт.

22

512629R1

SLEEVE, shoe

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

1шт.

23

PO3232

COLLAR, shoe stop

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

1шт.

24

33754A

SHOE, left

1шт.

24

33753A

SHOE, right

1шт.

Выбрано товаров: 51
