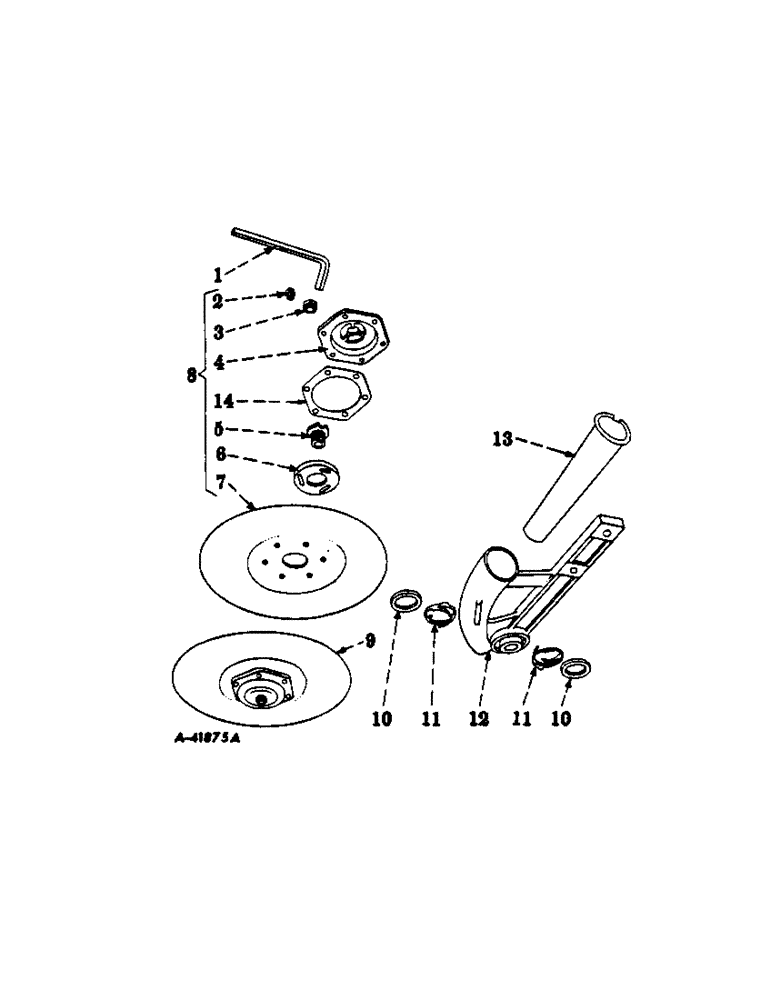

Запчасти Case IH 284 (A-21) - DOUBLE DISK OPENER

1

N62286

TOOL

WRENCH, bearing

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

621021R1

CONNECTOR, ELEC

PLUG, screw

1шт.

4

600760R1

HUB

disk, 1961 and since

1шт.

4

NA2552

HUB

disk, 1957 to 1961, order 600760R1 and 600761R1 rivet, 1/4 x 9/16 rd-hd

6шт.

5

621823R1

PLUG

bearing block left

1шт.

5

621824R1

PLUG

bearing block right

1шт.

6

NA2623

BLOCK

bearing

1шт.

7

621020R1

DISC

DISK, opener

1шт.

8

621023R93

DISC

DISK W/HUB AND BEARING, left

1шт.

9

621024R93

DISK W/HUB AND BEARING, right

1шт.

10

M10

FELT

WASHER, dust seal, felt

1шт.

11

620077R2

SPRING

dust seal left

1шт.

11

620078R2

SPRING

dust seal right

1шт.

12

523260R1

BOOT, disk opener

1шт.

13

523203R1

TUBE

SPOUT, seed

1шт.

14

600761R1

GASKET

disk, 1961 and since

1шт.
