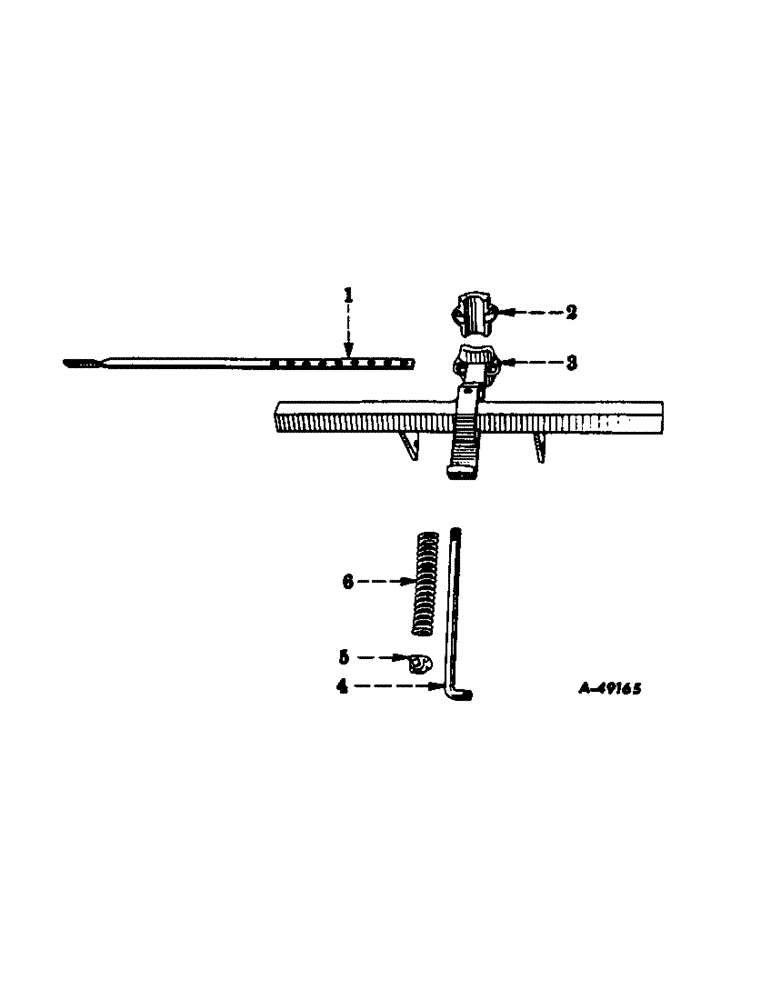

Запчасти Case IH 284 (A-15) - SINGLE TOOL BAR

1

523231R1

BAR, row spacing guide left, 1957

1шт.

1

523232R1

BAR, row spacing guide right, 1957

1шт.

512353R1

PIN, quick-attachable cotter

3шт.

48375

PIN, 3/8 x 1 dld-std-hd

1шт.

Q3536

PIN

3/8 x 2-3/8

2шт.

2

1779BB

CLAMP

CAP, furrow opener bar

1шт.

29822BX

BOLT

W/NUT, 1/2 x 2-3/4 sq-hd mach

2шт.

3

523229R11

TOOL BAR, single, 1957

1шт.

3

524384R91

TOOL BAR, single, 1958 to 1960, order 464282R91 and 76730H

2шт.

3

464282R91

TOOL BAR, single, 1960 and since

1шт.

4

464278R1

ROD, pressure, 1960 and since

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

4

523217R1

ROD, pressure, Serial Range: 1957-1960

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 self-opening cot.

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, 1960 and since

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

5

5326X

COLLAR

W/SET SCREW, Serial Range: 1957-1960

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

6

523267R1

SPRING

pressure rod

1шт.
