(C-08[A]) - PARTS REQUIRED TO ADAPT PLANTER UNIT TO 268 AND 468 CULTIVATORS WHEN USED IN CONNECTION WITH FARMALL 504, 460, AND 560 TRACTORS

Запчасти Case IH 188 (C-08[A]) - PARTS REQUIRED TO ADAPT PLANTER UNIT TO 268 AND 468 CULTIVATORS WHEN USED IN CONNECTION WITH FARMALL 504, 460, AND 560 TRACTORS

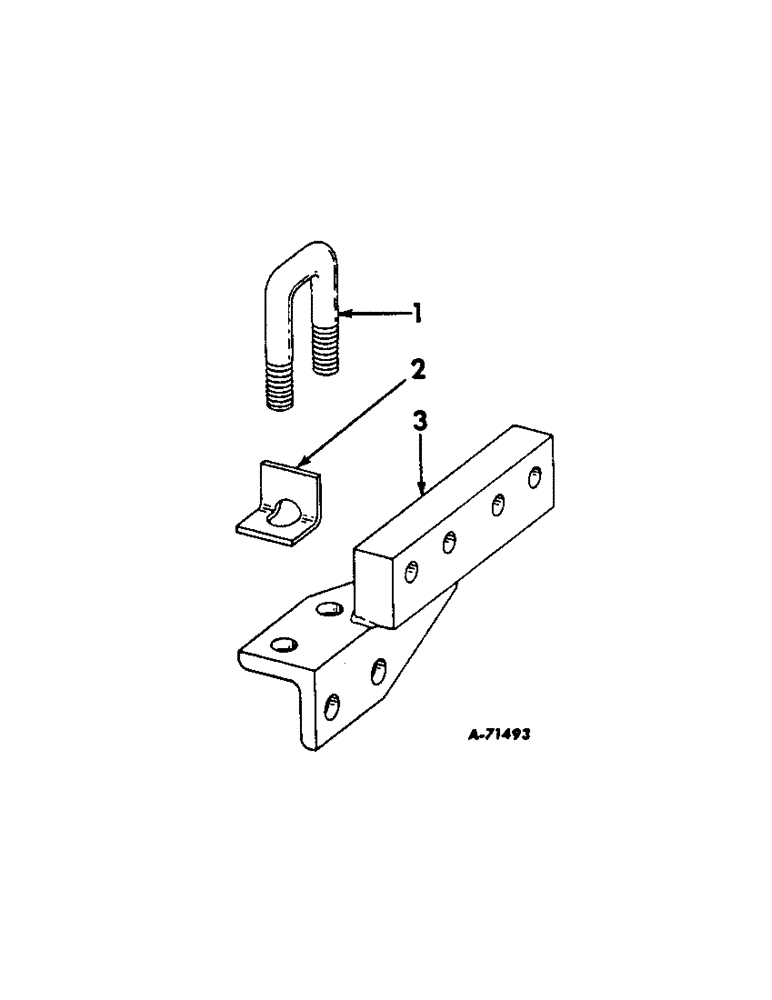

Схема запчастей Case IH 188 - (C-08[A]) - PARTS REQUIRED TO ADAPT PLANTER UNIT TO 268 AND 468 CULTIVATORS WHEN USED IN CONNECTION WITH FARMALL 504, 460, AND 560 TRACTORS
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

468689R1

U-BOLT, attaching bracket

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

(Not used in this application)

1шт.

3

468684R91

BRACKET, attaching LH

1шт.

3

468685R91

BRACKET, attaching RH

1шт.

Выбрано товаров: 6
