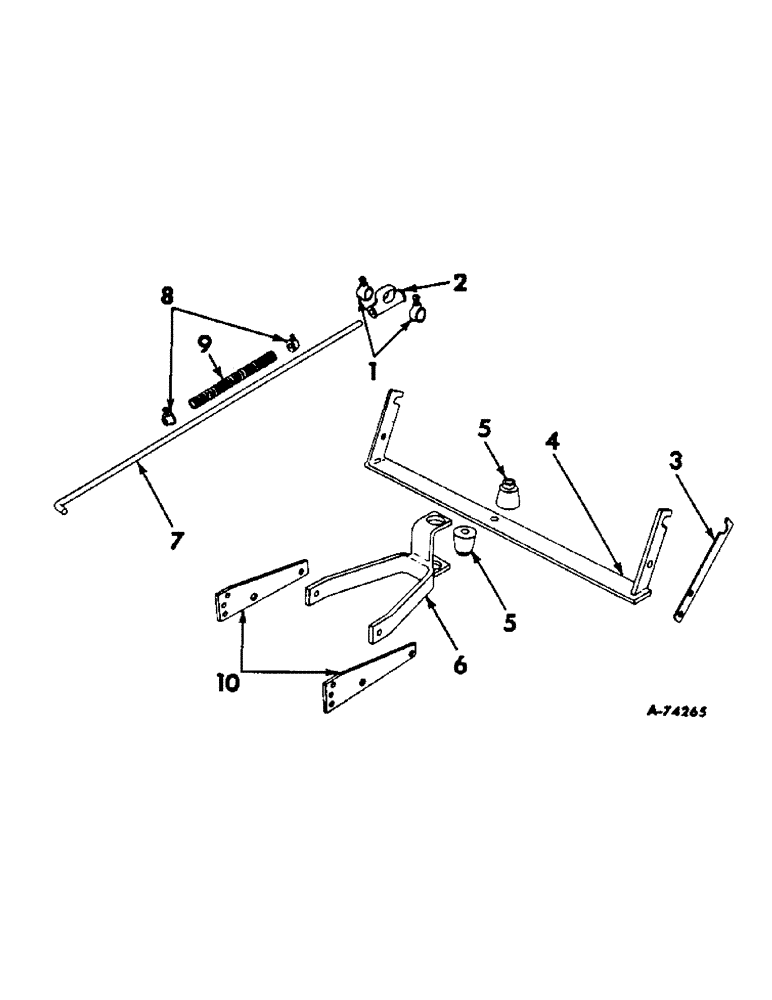

Запчасти Case IH 188 (C-07) - PLANTER ATTACHING UNIT, PARTS REQUIRED TO ATTACH 186

1

2638X

COLLAR

W/SET SCREW, cultivator lifting bar

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 cup-pt sq-hd set

1шт.

2

1855B

PIVOT

SWIVEL, lift rod

1шт.

3

522136R1

BRACE, hitch bar

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

4

523215R11

BAR, planter hitch

1шт.

5

PO2051

BUSHING, hitch pivot

1шт.

6

522135R91

PIVOT, vertical and lateral

1шт.

BOLT W/NUT, 5/8 x 5-1/4 mach

1шт.

WASHER, 21/32 x 1-1/4 x 16 ga

1шт.

7

464280R1

ROD, lift

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

8

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

9

PO23

SPRING

lift rod pressure

1шт.

10

523211R1

EXTENSION, planter frame rail

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 1/2 lock

1шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga, on tractor stud for attaching hitch bar bracket, for Farmall 100 tractor only

1шт.
