Запчасти Case IH 188 (C-51) - UNIVERSAL MARKER UNIT, DISK-TYPE, CLOSED BEARING

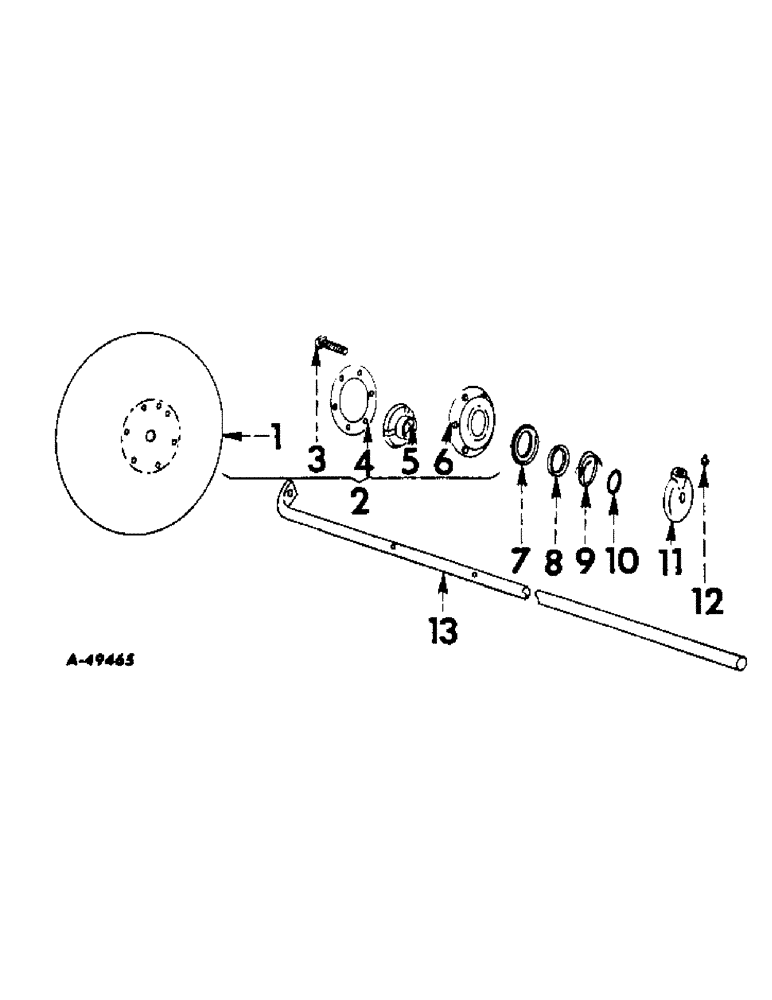

Схема запчастей Case IH 188 - (C-51) - UNIVERSAL MARKER UNIT, DISK-TYPE, CLOSED BEARING
4
10
1
6
13
2
12
7
3
11
8
5
9

Артикул

Название

Примечание

Количество

1

NA42304

DISC

DISK W/PLUG

1шт.

2

620446R91

DISK ASSEMBLY

1шт.

3

620156R1

BOLT

1/2 NF x 2 sq-hd mach, disk bearing

1шт.

25-118

NUT,1/2"-20, G5

1/2 NF

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

N62375

GASKET

hub

1шт.

5

N2614

BLOCK

bearing

1шт.

6

NA2615

HUB, disk

1шт.

RIVET, 1/4 x 5/8 rd-hd

6шт.

7

N2616

WASHER

RING, dust

1шт.

8

M10

FELT

WASHER, felt dust

1шт.

9

620075R1

RETAINER

felt washer left spring

1шт.

9

620076R1

RETAINER

felt washer right spring

1шт.

10

615991R1

WASHER

1-3/32 x 1-1/2 x 26 ga, between disk hanger and bearing block

1шт.

11

620479R1

CLAMP

HANGER, disk

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

13

524979R1

SHAFT, marker disk, overall length approx. 24 in.

1шт.

13

525006R1

SHAFT, marker disk, overall length approx. 47 in.

1шт.

Выбрано товаров: 18
