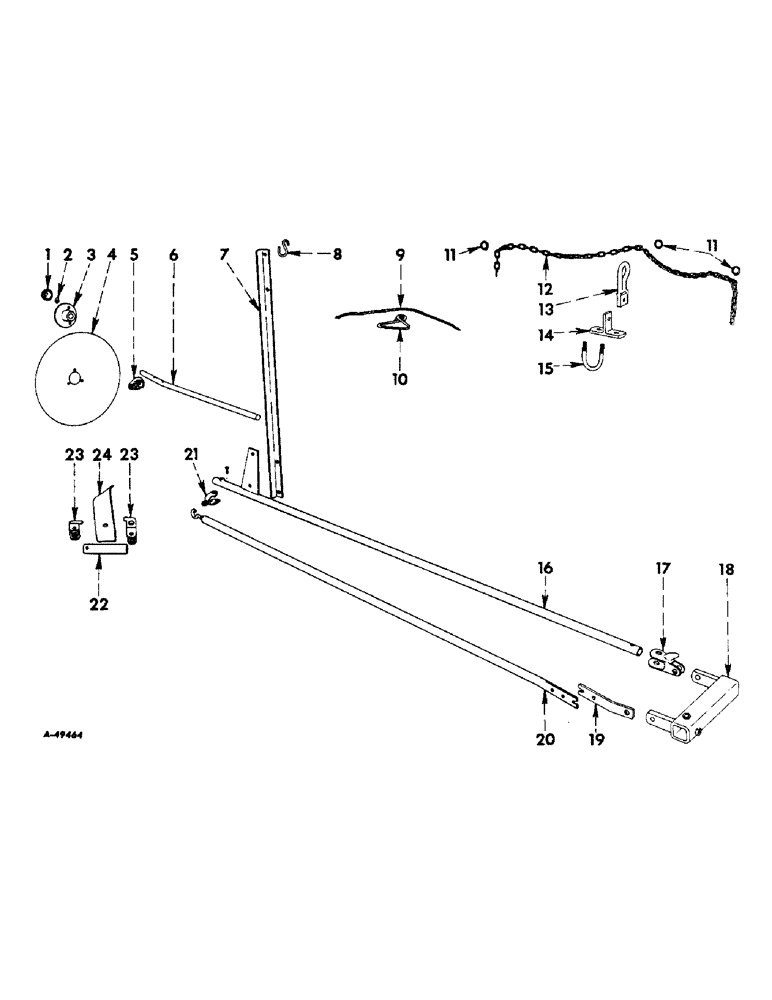

Запчасти Case IH 188 (C-50) - MARKER, FOUR ROW

1

3786

BEARING WASHER

WASHER, hub

1шт.

2

110161

FITTING, 3/16 drive type straight lub

1шт.

3

PO1752A

HUB, disk

1шт.

4

S3946

DISK, marker 14 in.

1шт.

RIVET, 5/16 x 7/8 rd-hd

3шт.

4

PO16198

DISK W/HUB

1шт.

5

PO1428

ANCHOR, marker

1шт.

6

519418R2

AXLE, disk

1шт.

PIN, 1/4 x 1-1/2 self-opening cotter

1шт.

7

524974R1

EXTENSION, lift plate

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

8

PO12729

HOOK

extension, S

1шт.

9

ROPE, marker, 1/4 x 28 ft, purchase locally

1шт.

10

PO15110A

HANDLE, rope

1шт.

11

524976R1

RING, chain locating

1шт.

12

524921R91

CHAIN, marker, 57 links

1шт.

13

524962R1

GUIDE, rope

1шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

WASHER, 3/8 lock

1шт.

14

524973R11

BRACKET, rope hanger, for Farmall 300, 350, 400 and 450 tractors

1шт.

14

526198R11

BRACKET, rope hanger, for Farmall 460 and 560 tractors

1шт.

15

520901R11

U-BOLT W/NUTS, rope hanger, for Farmall 300, 350, 400 and 450 tractors

1шт.

15

526197R11

U-BOLT W/NUTS, rope hanger, for Farmall 460 and 560 tractors

1шт.

NUT, 7/16

2шт.

WASHER, 7/16 lock

2шт.

16

524975R11

PIPE

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

17

PO3162

KNUCKLE, attaching bracket

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

PIN, 3/16 x 1 self-opening cotter

1шт.

N62023

PIN, 5/8 x 1-7/16 dld-std-hd

1шт.

18

524971R91

BRACKET, attaching

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

4шт.

19

520665R1

STRAP, pivot friction

1шт.

BOLT W/NUT, 5/16 x 1 mach

2шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

WASHER, 5/16 lock

2шт.

WASHER, 1/2 lock

1шт.

WASHER, 11/32 x 7/8 x 16 ga

2шт.

WASHER, 17/32 x 1-1/4 x 16 ga

1шт.

20

520595R11

PIPE, pull

1шт.

21

4766

TUBE

COLLAR, pull pipe

1шт.

BOLT W/NUT, 3/8 x 1-3/4 crg

1шт.

22

512629R1

SLEEVE, shoe

1шт.

PIN, 1/4 x 1-1/2 self-opening cotter

1шт.

23

PO3232

COLLAR, shoe stop

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

1шт.

24

33754A

SHOE, left

1шт.

24

33753A

SHOE, right

1шт.
