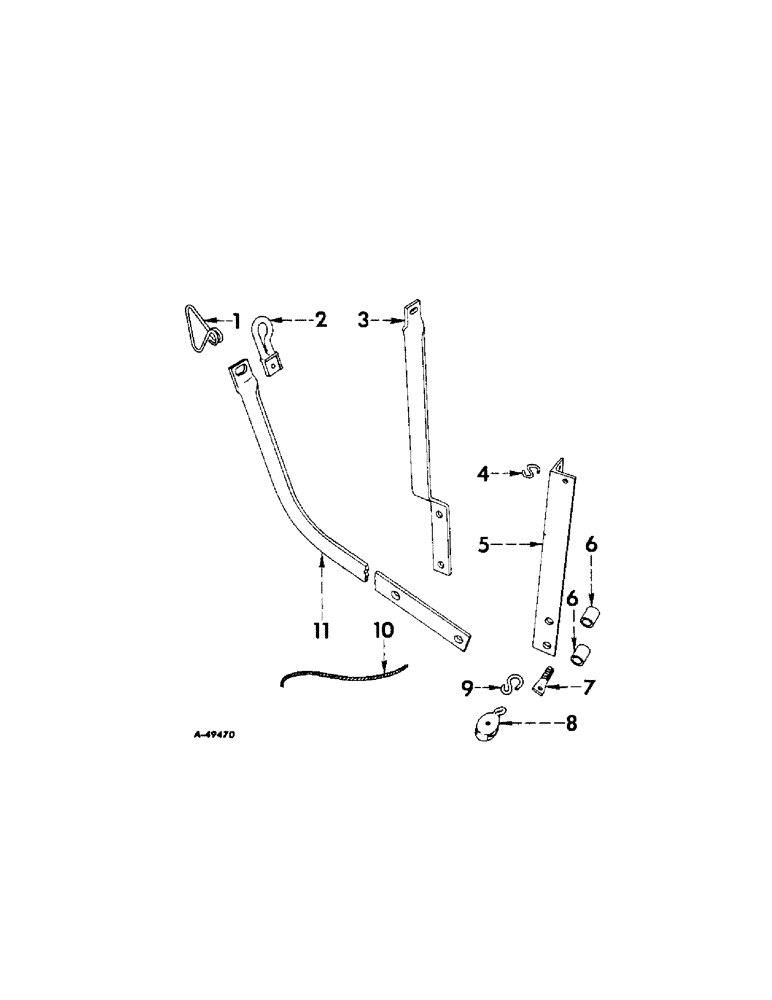

Запчасти Case IH 188 (C-47[A]) - UNIVERSAL MARKER ROPE GUIDE ARMS

1

PO15110A

HANDLE, rope

1шт.

2

524962R1

GUIDE, rope

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

3

525022R1

ARM, rope guide

1шт.

BOLT W/NUT, 3/4 x 1-1/2 mach

2шт.

4

PO12729

HOOK

pulley anchor, S

1шт.

5

525025R1

ANCHOR, pulley

1шт.

BOLT W/NUT, 5/8 x 2-3/4 mach

2шт.

6

525026R1

SPACER, pulley anchor

1шт.

7

525019R1

STUD, pulley

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

8

514938R91

PULLEY

1шт.

9

520841R1

HOOK, pulley stud, S

1шт.

10

ROPE, 228 in. long, purchase locally

1шт.

11

525021R2

ARM, rope guide

1шт.

BOLT W/NUT, 3/4 x 1-1/2 mach

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

652415R1

SPACER

for rope hanger when used on Farmall and International 706 and 806 tractor

1шт.

BOLT, 3/4 x 4-1/2 mach

1шт.

WASHER, 3/4 lock

1шт.
