Запчасти Case IH 188 (C-06) - HOPPER DRIVE, FOR 188 PLANTER

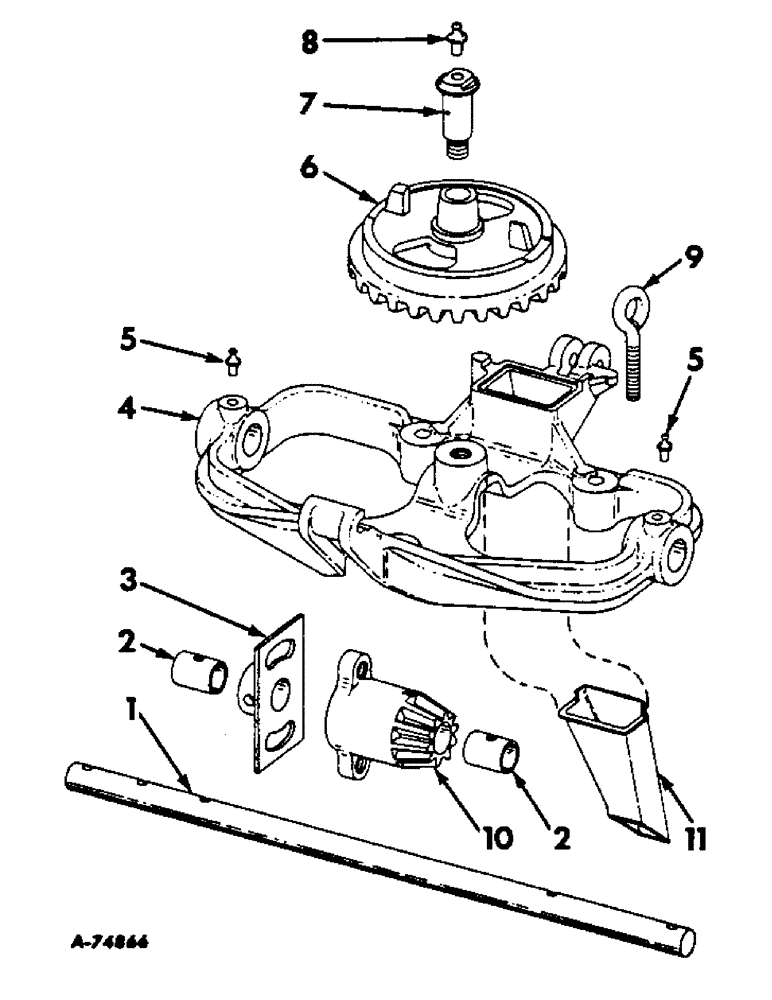

Схема запчастей Case IH 188 - (C-06) - HOPPER DRIVE, FOR 188 PLANTER
1
8
6
5
11
5
2
3
9
7
2
10
4

Артикул

Название

Примечание

Количество

1

468425R2

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 self-opening cot.

1шт.

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter

1шт.

471210R1

PIN

1/4 x 1-21/32 chamfered std-hd, for sprockets

1шт.

WASHER, 25/32 x 1-1/2 x 16 ga

2шт.

2

527132R1

BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L

feed shaft, brz

2шт.

BOLT, 3/8 x 2 mach

2шт.

BOLT, 1/2 x 1-3/4 mach

1шт.

NUT, 3/8 lock

2шт.

WASHER, 3/8 lock

1шт.

WASHER, 1/2 lock

1шт.

3

468428R91

PLATE, timing

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z mach

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER

2шт.

4

468422R11

BRACKET, hopper

1шт.

5

Q3852

FITTING

1/4 straight drive type lub.

2шт.

6

468424R2

GEAR, ring, 40T

1шт.

7

469751R1

STUD, drive gear

1шт.

8

273356

SPARE PART

FITTING, 5/16 straight drive type lub.

1шт.

9

471195R1

BOLT (SPREADER)

EYEBOLT, C-Z hopper hold-down

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.

U5349

PIN

5/16 x 1-5/16 dld-std-hd

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

10

468427R1

PINION, bevel, 10T

1шт.

11

468447R1

SPOUT, hopper bracket

1шт.

Выбрано товаров: 29
