Запчасти Case IH 188 (C-36) - BLADE COVERING ATTACHMENT, 1964 AND SINCE

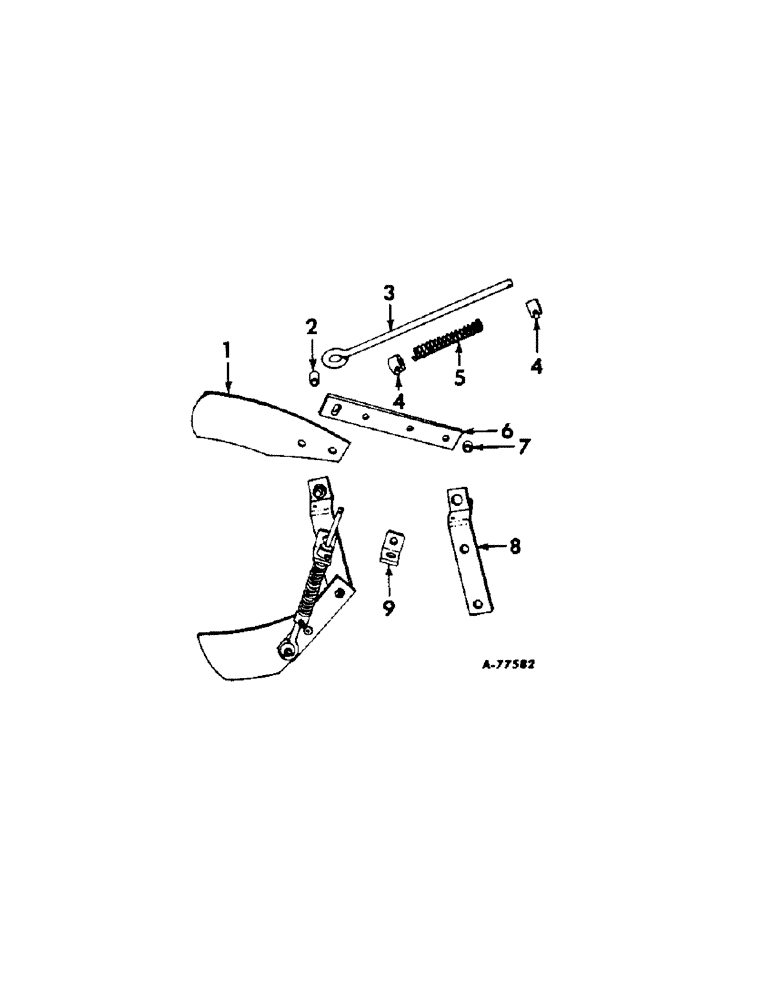

Схема запчастей Case IH 188 - (C-36) - BLADE COVERING ATTACHMENT, 1964 AND SINCE
6
7
2
1
8
4
4
3
5
9

Артикул

Название

Примечание

Количество

1

621426R2

BLADE

covering LH

1шт.

1

621427R2

BLADE

covering RH

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

2

526712R1

BUSHING

pressure rod

1шт.

3

526714R1

ROD, pressure

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 10 ga

1шт.

4

517951R11

WEAR PAD

COLLAR W/SET SCREW, pressure rod

2шт.

105111

FITTING

SCREW, 5/16 x 3/8 cup-pt sq-hd set

2шт.

5

PO104

VALVE SPRING

SPRING, pressure

1шт.

6

526711R1

ARM, covering blade

1шт.

17470R1

BOLT

5/16 x 1-1/2 mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

557265R1

WASHER

11/32 x 1 x 11 ga

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

7

526713R1

BUSHING, pivot bracket

1шт.

8

477044R21

BRACKET ASSY, pivot

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

17894R1

BOLT, 1/2 x 6-1/4 hex-hd mach

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q399

WASHER

11/32 x 1 x 16 ga

2шт.

9

515868R1

BRACE, pressure rod

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

1шт.

Выбрано товаров: 28
