Запчасти Case IH 188 (C-36[A]) - DISK COVERING ATTACHMENT, 1964 AND SINCE

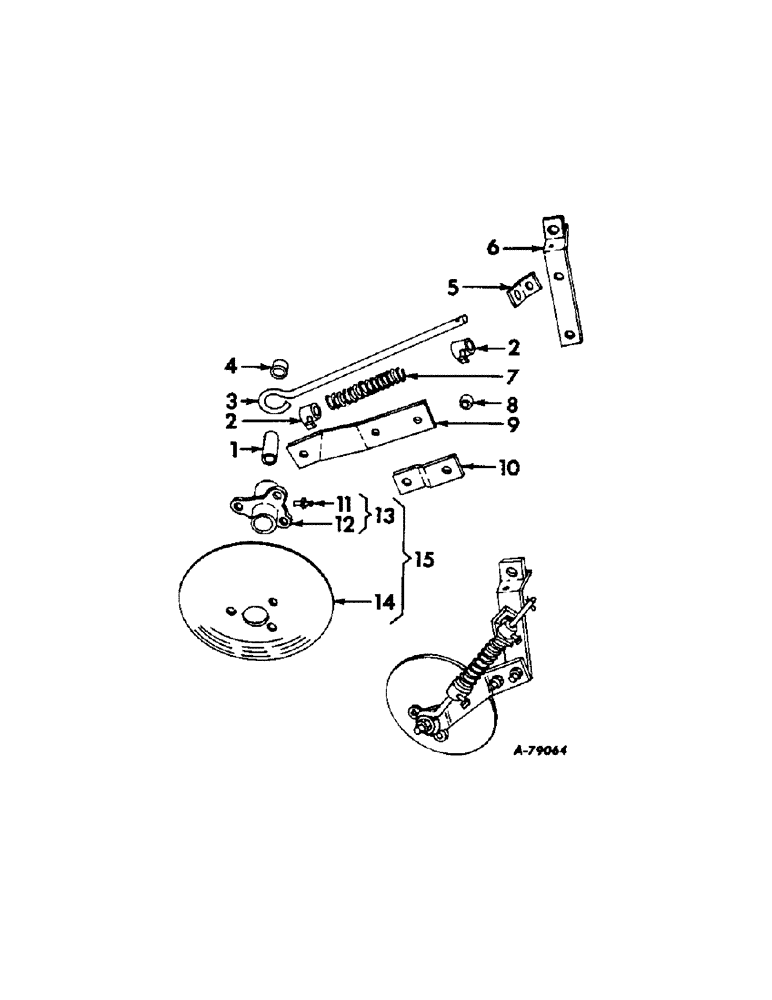

Схема запчастей Case IH 188 - (C-36[A]) - DISK COVERING ATTACHMENT, 1964 AND SINCE
3
11
2
13
10
15
7
4
6
2
1
12
5
8
9
14

Артикул

Название

Примечание

Количество

1

517958R2

BUSHING

hub

1шт.

2

517951R11

WEAR PAD

COLLAR W/SET SCREW, pressure rod set

1шт.

105111

FITTING

SCREW, 5/16 x 3/8 sq-hd cup-pt set

1шт.

3

520473R1

ROD, pressure

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

4

22586N

SPACER,3/8" Pipe x 9/16"

BUSHING, pressure rod

1шт.

5

515868R1

BRACE, pressure rod

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

477044R21

BRACKET ASSY, pivot

1шт.

17894R1

BOLT, 1/2 x 6-1/4 hex-hd mach

1шт.

7

PO104

VALVE SPRING

SPRING, pressure rod

1шт.

8

526713R1

BUSHING, pivot bracket

1шт.

9

526717R1

ARM, disk cover LH

1шт.

9

526718R1

ARM, disk cover RH

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

10

526709R1

STRAP, hammer

1шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type straight lubrication

1шт.

12

517948R2

HUB, disk cover

1шт.

17649R1

BOLT, 7/16 x 3-1/4 hex-hd mach

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 lock

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

1шт.

13

517948R21

DISC

HUB W/FITTING, disk cover

1шт.

14

53007

DISK, covering

1шт.

102682

RIVET, 3/16 x 11/6 rd-hd, not serviced separately, order 623128R12

3шт.

15

623128R12

DISC

DISK ASSY W/HUB, covering

1шт.

Выбрано товаров: 34
