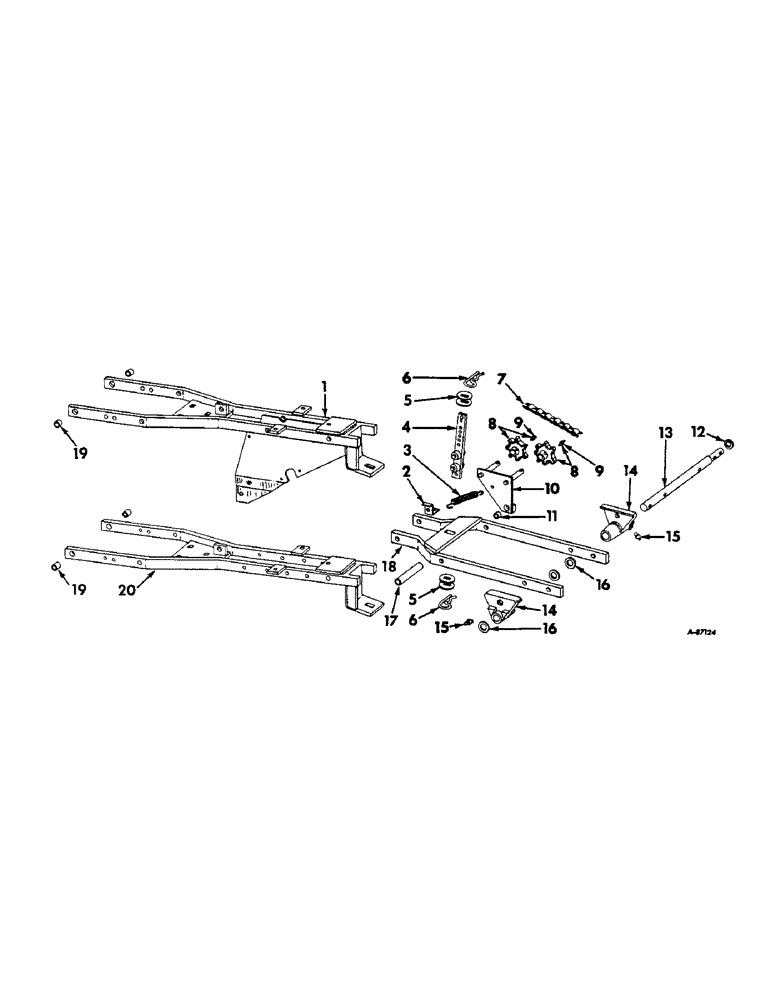

Запчасти Case IH 188 (C-04) - MAIN FRAME

1

468398R92

FRAME ASSY, main, Serial Range: 1962-1966

1шт.

2

471192R1

ANCHOR, spring

1шт.

2

478086R1

ANCHOR, spring, for 16 x 20 in. flat steel press wheel, 186 planter

1шт.

3

2072A

VALVE SPRING

SPRING, chain tightener

1шт.

4

471193R1

STRAP, press wheel adjusting

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

106902

RIVET, 1/4 x 1 small truss-hd solid Truss Hd, 1/4" x 1"

2шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

8шт.

5

468420R1

WASHER

press wheel adjusting strap

9шт.

6

471194R1

AXLE PIN

PIN, 1/4 x 3-3/4 cd-pltd quick-attachable cot.

2шт.

7

PO13237

CHAIN, main drive, use 45 no. 32 steel links from a 10 ft. roll no. GS-132

1шт.

7

23072A

CHAIN, extra links, use 4 no. 32 steel links from a 10 ft. roll no. GS-32

1шт.

8

3621AAX

SPROCKET ASSY.

SPROCKET W/LUBRICATION FITTING, main chain tightener

2шт.

9

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type straight lub.

2шт.

10

471189R91

SUPPORT

TIGHTENER ASSY, main chain

1шт.

17497R1

BOLT, 7/16 x 1-3/4 mach

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

1шт.

NLS

NO LONGER SERVICED

NU, 7/16 hex.

1шт.

11

468416R1

BUSHING, chain tightener

1шт.

12

551178R1

WASHER

25/32 x 1-3/4 x 16 ga

1шт.

13

471188R2

AXLE, wheel

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

13094

SEAL

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-3/4 dld-std-hd

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

1шт.

13

478087R1

AXLE, wheel, for 16 x 20 in. flat steel press wheel, 186 planter

1шт.

NA62771

PIN

1/4 x 1-7/16 std-hd

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

PIN, 1/4 x 3/4 self-opening cot.

2шт.

557270R1

WASHER

29/32 x 1-1/4 x 11 ga

2шт.

14

468410R21

BEARING ASSY, wheel axle

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

1шт.

17489R1

BOLT, 1/2 x 1-3/4 mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

15

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type lub.

2шт.

16

21868V

WASHER

29/32 x 1-1/2 x 16 ga

3шт.

17

468406R1

SPACER, rail pivot

1шт.

18

468407R92

RAIL ASSY, press wheel

1шт.

18

478082R91

RAIL ASSY, press wheel, for 16 x 20 in. flat steel press wheel, 186 planter

1шт.

17864R1

BOLT, 1/2 x 5-3/4 hex-hd mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

2шт.

19

P24082

BRACE

BUSHING, hitch rail pivot

2шт.

20

484085R91

FRAME ASSY, main, 1966 and since

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2 x 1-3/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31696H

BOLT, 17/32 x 1-1/2 x 16 ga IH std 66

2шт.
