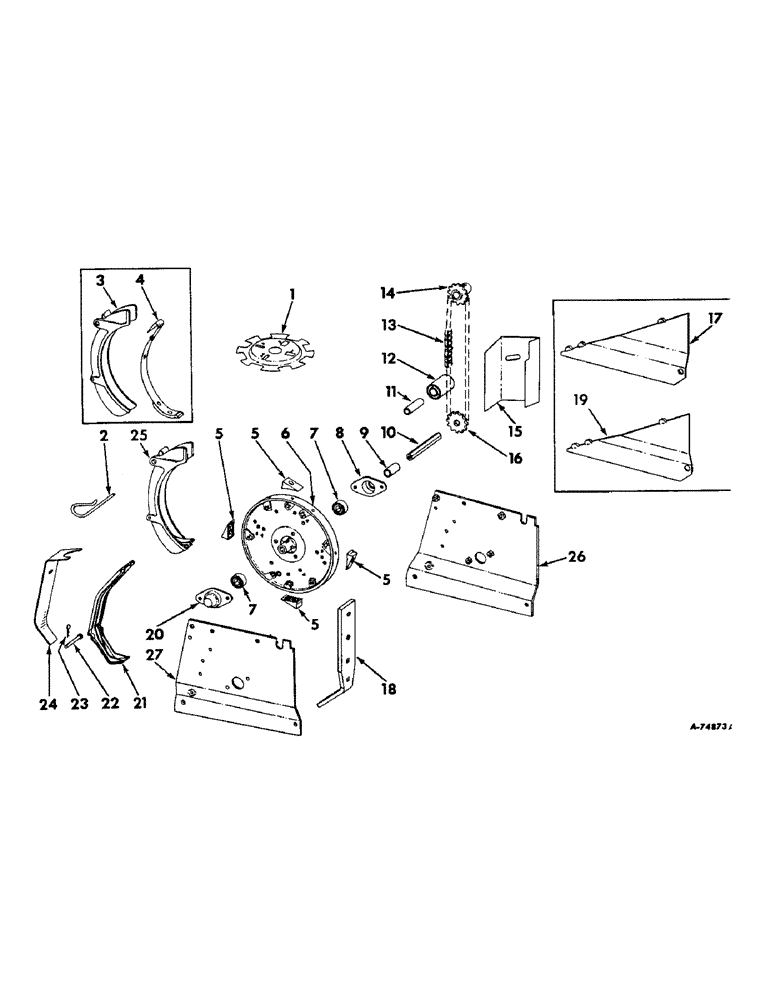

Запчасти Case IH 188 (C-33) - HILL DROP UNIT

1

472128R1

PLATE, accumulator, for 188 planter

1шт.

2

471207R1

PIN

1/4 x 4 quick-attachable cotter, in valve front cover

1шт.

3

468443R2

CASE

spring retaining, Serial Range: 1962-1965

1шт.

426915

RETAINER

NUT, no. 8 unf C-Z

2шт.

420153

SCREW, no. 8 unf x 1/2 C-Z slt-f-hd mach

2шт.

131182

WASHER, LOCK

WASHER, no. 8 C-Z lock

2шт.

4

468445R11

SPRING

seed retaining, Serial Range: 1962-1965

1шт.

426915

RETAINER

NUT, no. 8 unf C-Z

2шт.

4520153

SCREW, no. 8 unf 1/2 C-Z slt-f-hd mach

2шт.

131182

WASHER, LOCK

WASHER, no. 8 C-Z

2шт.

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

7/32 x 7/16 x .049 thick C-Z

2шт.

5

468464R1

LUG

seed wheel

4шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

no. 10 x 1 C-Z slt-f-hd mach

4шт.

6

472129R21

WHEEL

ASSY, seed, plastic

1шт.

120619

NUT

10-24 C-Z

8шт.

449649

SCREW, 1/4 x 3/4 C-Z cr-rec-pan-hd tap

3шт.

7

471204R91

BEARING

ASSY, rotorshaft

2шт.

8

471203R1

FLANGE, rotor bearing open

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

471201R1

SPACER, rotor shaft sprocket

1шт.

10

471199R1

SHAFT

rotor

1шт.

179812

GEAR

SCREW, 5/16 x 1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

11

468460R1

SPACER

rotor chain tightener

1шт.

12

468417R1

ROLLER

rotor drive chain tightener

1шт.

15172R1

BOLT, 3/8 x 3-1/2 crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

Q1581

WASHER, 13/32 x 1-1/2 x 16 ga sq-hole

1шт.

3420H

WASHER, 13/32 x 1-3/4 x 16 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.

13

CHAIN, rotor drive, use 37 links of 1/2 pitch roller chain from a 10 ft roll marked 475879R91, one offset link 1308D and two connecting links 1306D and one roller link 1307D

1шт.

14

468465R12

SPROCKET, 12-T

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 dld-std-hd

1шт.

15

468462R2

GUARD, rotor chain

1шт.

16

471200R1

SPROCKET

rotor, 12-T

1шт.

16

477024R1

SPROCKET, rotor, 10-T, required when using 16 cell seed plate and 12-40 hopper drive gear ratio. Replaces regular 12-T sprocket, for 186 planter

1шт.

17

468456R2

PLATE, valve lower side RH, 1962

1шт.

17

474186R1

PLATE ASSY.

PLATE, valve lower side RH, Serial Range: 1963-1966

1шт.

17

468438R1

BAR, stabilizer

1шт.

17548R1

BOLT, 3/8-16 x 2-1/4 hex-hd mach

1шт.

17427R1

BOLT, 7/16 x 1 hex-hd

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

19

468455R2

PLATE, valve lower side LH, 1962

1шт.

19

474185R1

SIDE ASSY.

PLATE, valve lower side LH, Serial Range: 1963-1966

1шт.

20

471202R1

FLANGE, rotor bearing closed

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

471208R1

GUIDE

seed

1шт.

22

471198R1

PIN

1/4 x 2-23/64 cd-pltd bottom casing

1шт.

446161

WIRE CONNECTOR,6 Pole

7/32 x 7/16 x .049 thick C-Z

2шт.

23

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter

1шт.

24

468462R2

COVER, valve front

1шт.

25

479129R91

SPRING

ASSY, seed retaining, 1965 and since

1шт.

480994R1

RIVET, 3/16 x 1/2 cn-pltd csk-hd tubular

4шт.

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

13/64 x 1/2 x 18 ga C-Z

4шт.

26

482620R11

PLATE ASSY, valve side RH, 1966 and since

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

27

482619R11

PLATE ASSY, valve side LH, 1966 and since

1шт.

170883

SPROCKET

SCREW, 1/2-13 x 1-1/4 hex-hd cap

2шт.
