(C-30) - STANDARD CLAMP AND TOOL BAR, FOR DISK BEDDING AND FURROWING ATTACHMENT

Запчасти Case IH 188 (C-30) - STANDARD CLAMP AND TOOL BAR, FOR DISK BEDDING AND FURROWING ATTACHMENT

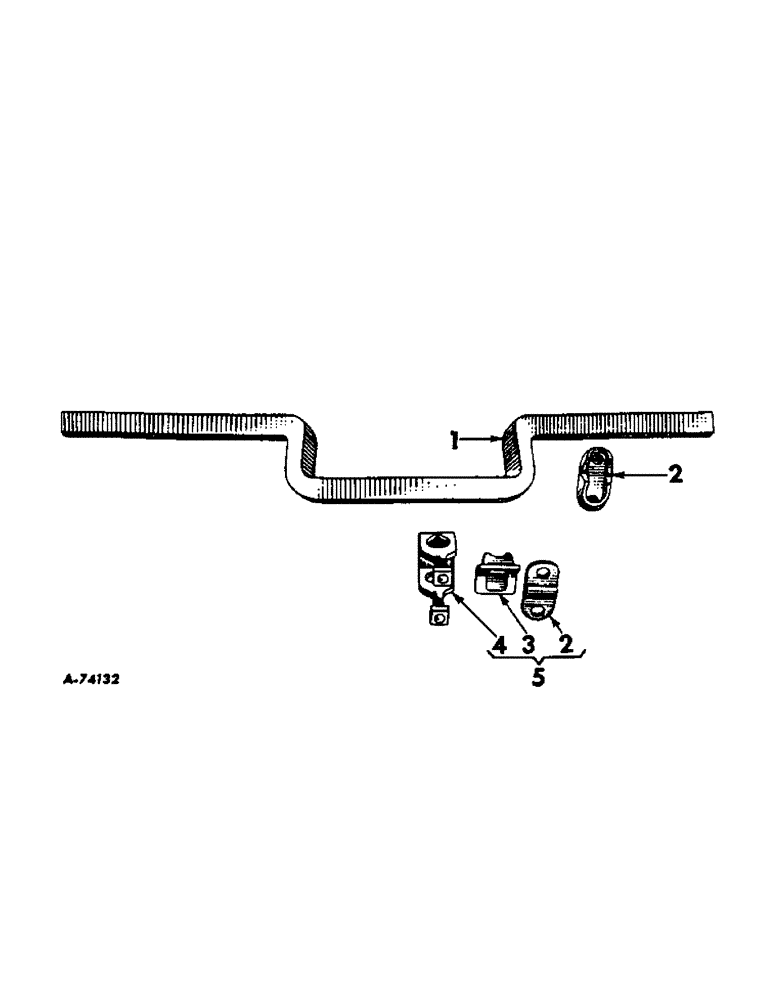

Схема запчастей Case IH 188 - (C-30) - STANDARD CLAMP AND TOOL BAR, FOR DISK BEDDING AND FURROWING ATTACHMENT
4
2
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

512624R2

ROD

TOOL BAR, 1-1/4 sq

1шт.

2

28256BB

CLAMP

tool bar

1шт.

BOLT W/NUT, 5/8 x 4 sq-hd mach

2шт.

3

1875B

CLAMP

BLOCK

1шт.

4

29600BAX

U-BOLT

W/NUTS

1шт.

NUT, 5/8

2шт.

5

29601BA

CLAMP

ASSEMBLY, for 1-1/8 or 1-1/4 in. round standard

1шт.
