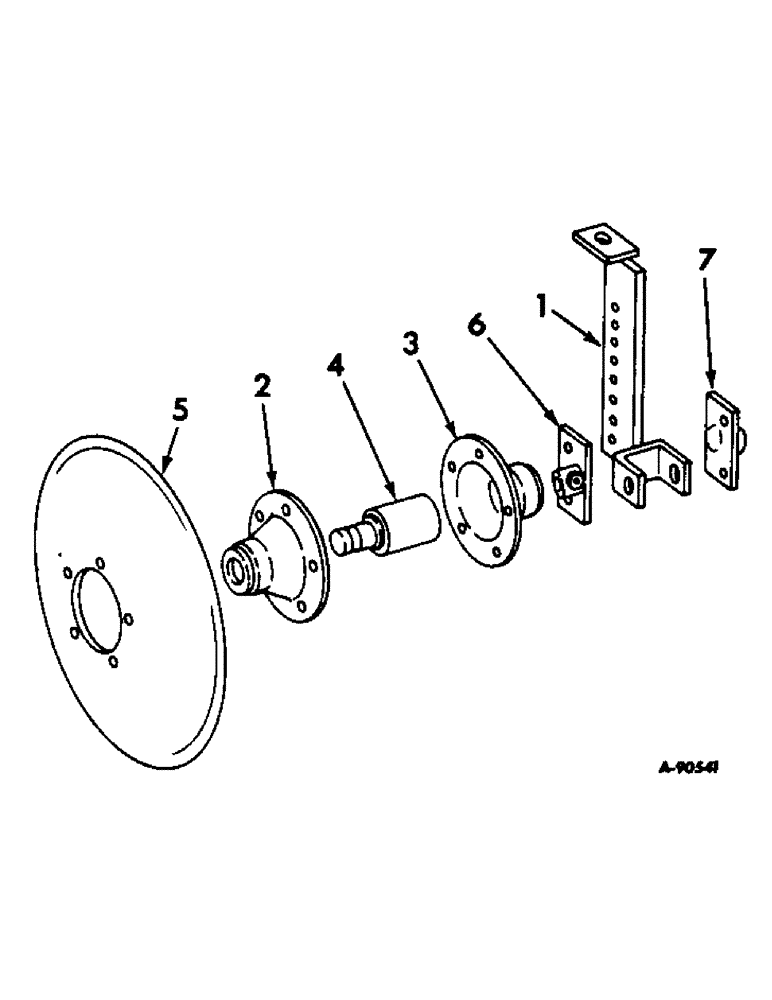

Запчасти Case IH 188 (C-29) - DISK FURROWING ATTACHMENT, 12 IN.

1

490134R1

BRACKET ASSY, disk mounting

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z nut

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

2

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, brg inner

2шт.

3

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

brg outer

2шт.

4

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSY, disk

2шт.

5

479848R1

DISC

DISK, 12 in.

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

6

472248R91

MOUNTING ASSY, disk LH

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

472249R91

MOUNTING ASSY, disk RH

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 C-Z sq-hd cup-pt set

1шт.
