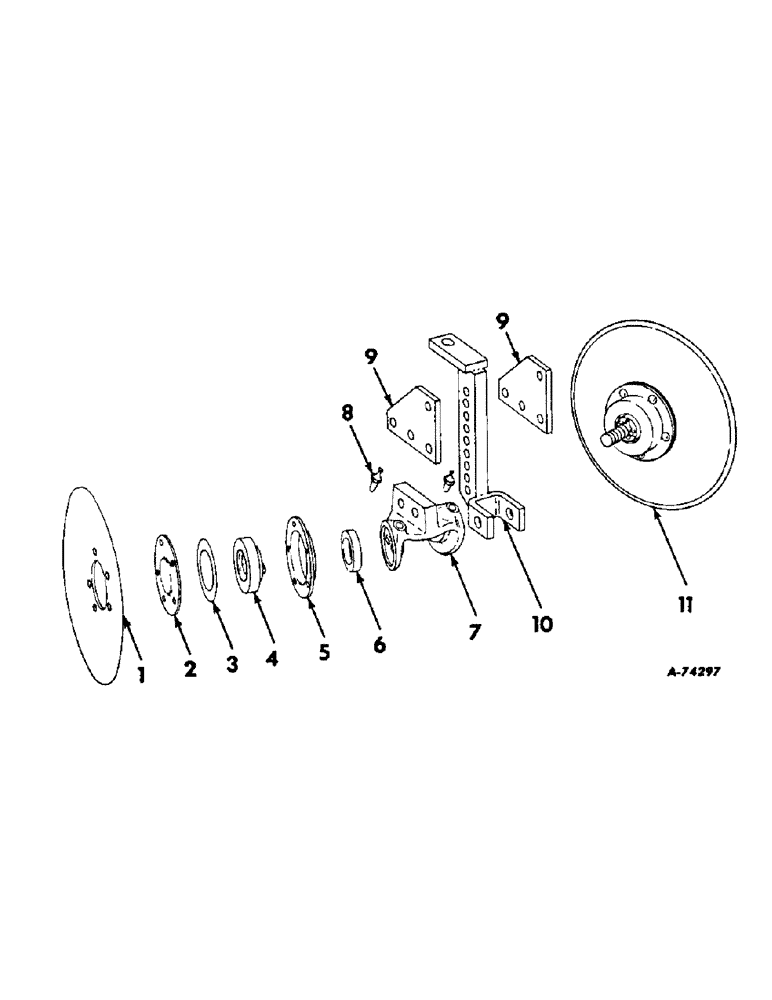

Запчасти Case IH 188 (C-28) - DISK FURROWING ATTACHMENT, 11 IN.

1

13566A

DISK, 11 in. dia, order 477901R1

2шт.

1

477901R1

DISK, 11 in. dia

2шт.

2

W7213

PLATE, cover

2шт.

102683

RIVET, 1/4 x 11/16 small b-hd

10шт.

3

M2

WASHER

GASKET, paper

2шт.

4

N748

BEARING

2шт.

13292R1

BOLT, 7/16 x 1-1/2 sq-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

5

W4227

HOUSING

HUB, bearing

2шт.

6

M10

FELT

WASHER, felt

2шт.

7

468506R1

BLOCK, disk

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

468505R1

PLATE, disk block

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

10

468501R91

BRACKET ASSY, disk

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

626470R92

DISK W/HUB AND BEARING, 11 in.

2шт.
