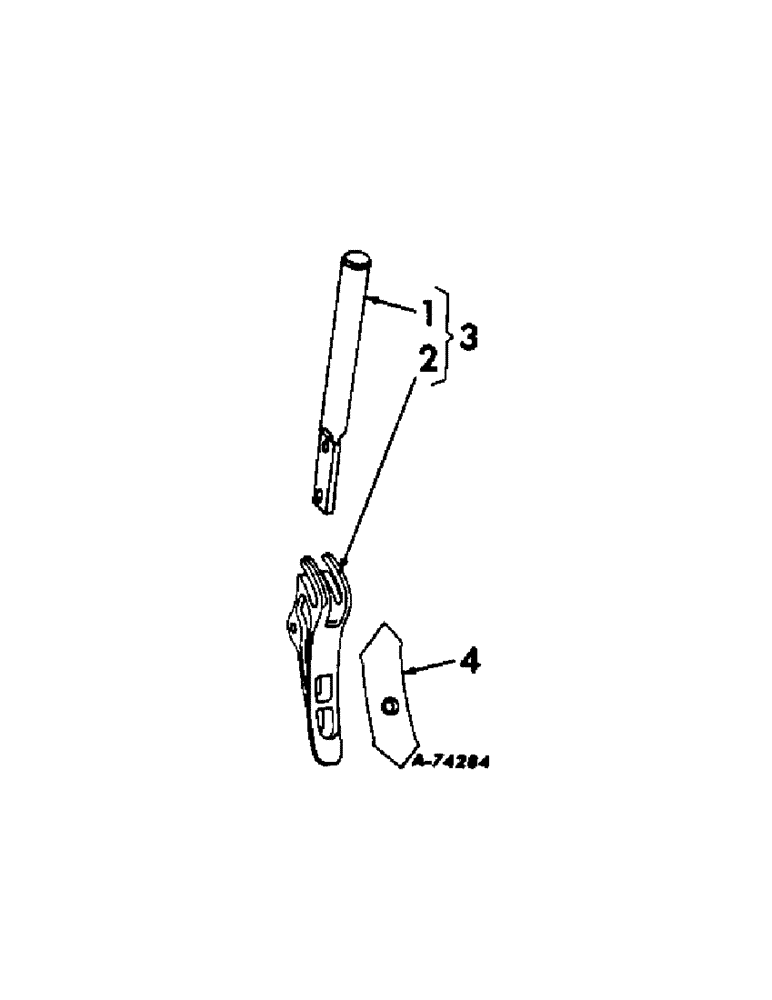

Запчасти Case IH 188 (C-24[A]) - COVERING SHOVEL AND FRICTION TRIP

1

516507R1

STANDARD, straight, 1-1/4 in. dia 13-1/4 in. long

1шт.

2

516513R1

TRIP

BREAK-OFF, standard

1шт.

BOLT W/NUT, 1/2 x 2-1/4 crg

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/2 x 11 ga

2шт.

3

516497R91

TRIP

FRICTION TRIP ASSEMBLY, straight

1шт.

4

26013B

SHOVEL

double-point

1шт.

27583BX

BOLT W/NUT, 3/8 x 2-1/2 no. 3 plow

1шт.

WASHER, 13/32 x 1-1/2 x 16 ga

1шт.
