(C-22) - PRESS WHEEL SPRING ATTACHMENT, FOR USE WITH DEPTH BAND ATTACHMENT & GAUGE SHOE ATTACHMENT

Запчасти Case IH 188 (C-22) - PRESS WHEEL SPRING ATTACHMENT, FOR USE WITH DEPTH BAND ATTACHMENT & GAUGE SHOE ATTACHMENT

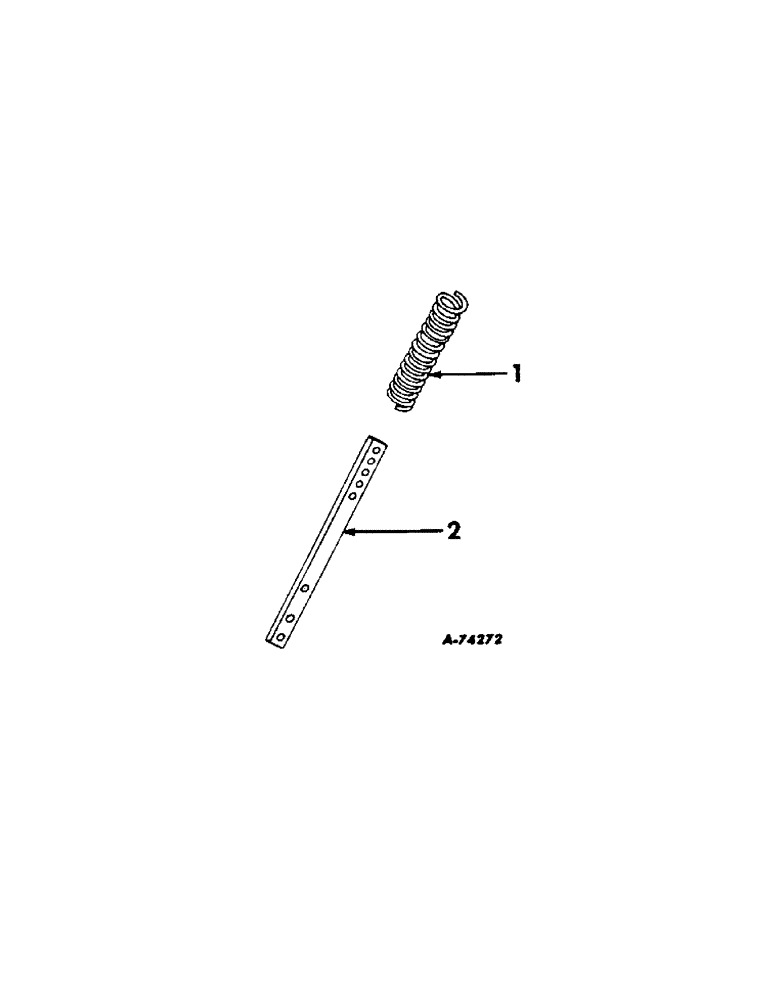

Схема запчастей Case IH 188 - (C-22) - PRESS WHEEL SPRING ATTACHMENT, FOR USE WITH DEPTH BAND ATTACHMENT & GAUGE SHOE ATTACHMENT
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PO109

SPRING

1шт.

2

471209R1

STRAP, spring adjusting

1шт.

106902

RIVET, 1/4 x 1 small truss-hd solid Truss Hd, 1/4" x 1"

2шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

8шт.
