Запчасти Case IH 188 (C-21) - FLAT STEEL PRESS WHEEL AND SCRAPER, FOR 186 PLANTER

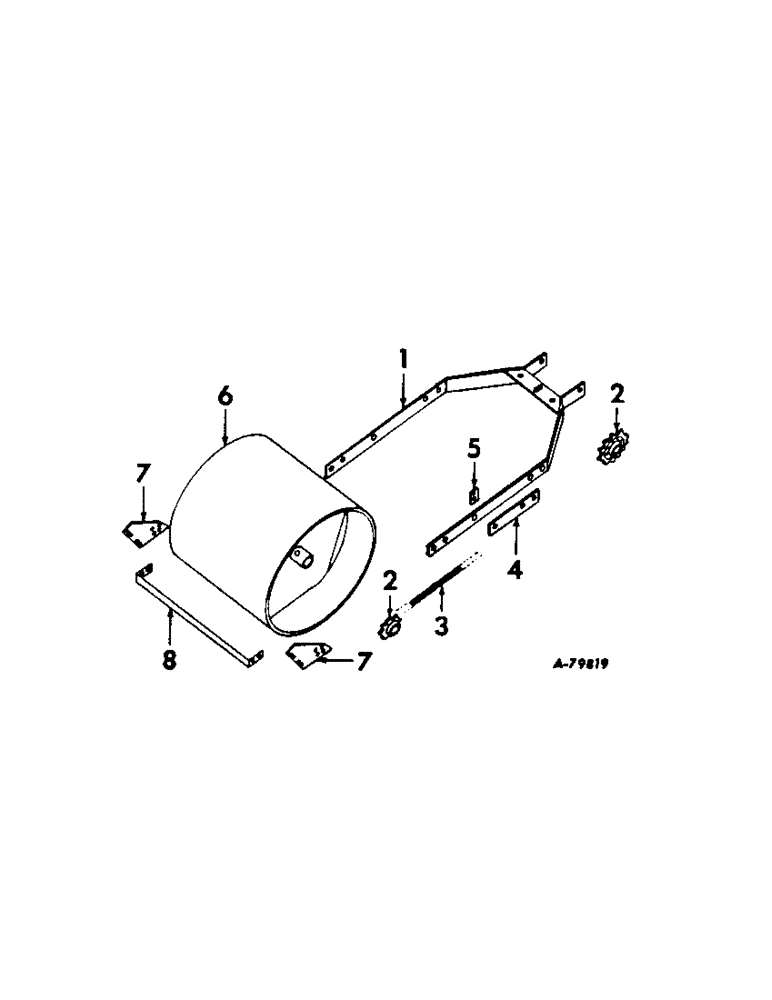

Схема запчастей Case IH 188 - (C-21) - FLAT STEEL PRESS WHEEL AND SCRAPER, FOR 186 PLANTER
7
1
4
5
2
8
2
6
7
3

Артикул

Название

Примечание

Количество

1

478082R91

RAIL ASSY, press wheel

1шт.

2

PO1763

DRIVE SPROCKET

SPROCKET, feed shaft or axle, 7-T

1шт.

471210R1

PIN

sprocket

1шт.

585614R1

PIN

quick-attachable cotter

1шт.

2

PO2754

DRIVE SPROCKET

SPROCKET, feed shaft or axle, 9-T

1шт.

2

PO2639BX

SPROCKET ASSY.

SPROCKETR W/SET SCREW, feed shaft or axle, 12-T

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 sq-hd cup-pt set

1шт.

2

515502R21

SPROCKET ASSY.

SPROCKET W/SET SCREW, feed shaft or axle, 14-T

1шт.

102894

SET SCREW

3/8 x 3/4 sq-hd cup-pt set

1шт.

3

CHAIN, drive, use 14 no. 32 steel links from a 10 ft roll marked CS-32

1шт.

4

478085R1

BAR, chain tightener

1шт.

BOLT, 1/2 x 1-1/2 mach

2шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

5

478086R1

STRIP, spring anchor

1шт.

6

478089R91

WHEEL ASSY, press

1шт.

7

478093R1

SUPPORT, scraper

2шт.

BOLT, 1/2 x 1-1/2 mach

4шт.

NUT, 1/2

4шт.

WASHER, 1/2 lock

4шт.

8

478094R1

CHANNEL, scraper blade

1шт.

BOLT, 3/8 x 1 mach

4шт.

NUT, 3/8

4шт.

WASHER, 3/8 lock

4шт.

Выбрано товаров: 24
