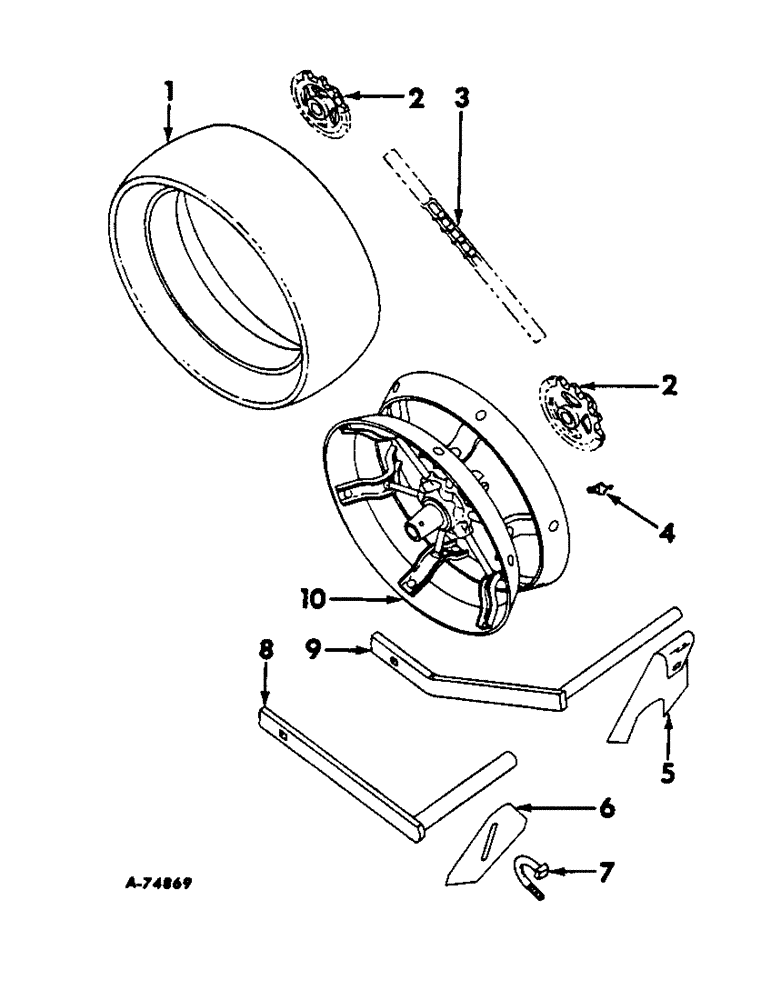

Запчасти Case IH 188 (C-20) - OPEN CENTER PRESS WHEEL, SCRAPERS AND ZERO-PRESSURE TIRES, FOR 16" & 20" WHEELS
№
Артикул
Название
Примечание
Количество
1
517315R1
TYRE/TIRE
TIRE, zero pressure 6 x 16 in.
1шт.
1
621990R2
TIRE, zero pressure 6-1/2 x 20 in.
1шт.
1
469410R1
TIRE, depressed center zero pressure 6-1/2 x 20 in.
1шт.
1
622855R1
TYRE/TIRE
TIRE, zero pressure 8 x 20 in.
1шт.
2
PO1763
DRIVE SPROCKET
SPROCKET, feedshaft or axle, 7-T, for 6 or 20 in. press wheel on 186 and 188 planter units
1шт.
471210R1
PIN
sprocket
1шт.
585614R1
PIN
.072 x 1-7/16 quick-attachable cotter
1шт.
2
PO2754
DRIVE SPROCKET
SPROCKET, feedshaft or axle, 9-T, for 20 in. press wheel on 186 and 188 planter units
1шт.
2
PO2704AX
SPROCKET ASSY.
SPROCKET, w/set screw, feedshaft or axle, 10-T, for 16 in. press wheel on 186 and 188 planter units
1шт.
2
PO575AX
SPROCKET ASSY.
SPROCKET W/SET SCREW, feedshaft or axle, 8-T, for 16 in. press wheel on 186 and 188 planter units
1шт.
102893
SCREW, 3/8 x 5/8 sq-hd cup-pt set
1шт.
2
PO2639BX
SPROCKET ASSY.
SPROCKET W/SET SCREW, feedshaft or axle, 12-T, for 20 in. press wheel on 186 planter unit only
1шт.
102905
SET SCREW,Sq Hd, 7/16"-14 x 3/4"
SCREW, 7/16 x 3/4 sq-hd cup-pt set
1шт.
2
PO3215X
SPROCKET ASSY.
SPROCKET W/SET SCREW, feedshaft or axle, 13-T, for 16 in. press wheel on 186 and 188 planter units
1шт.
2
515502R21
SPROCKET ASSY.
SPROCKET W/SET SCREW, feedshaft or axle, 14-T, for 20 in. press wheel on 186 and 188 planter units
1шт.
2
PO2678AX
SPROCKET W/SET SCREW, feedshaft or axle, 16-T, for 20 in. press wheel on 188 planter unit only
1шт.
102894
SET SCREW
3/8 x 3/4 sq-hd cup-pt set
1шт.
3
CHAIN, drive, use 9 no. 32 steel links from a 10 ft roll marked CS-32, for 16 in. press wheel on 186 and 188 planter units
1шт.
3
CHAIN, drive, use 14 no. 32 steel links from a 10 ft roll marked CS-32, for 20 in. press wheel on 186 planter unit only
1шт.
3
CHAIN, drive, use 16 no. 32 steel links from a 10 ft roll marked CS-32, for 20 in. press wheel on 188 planter unit only
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
5
13504AB
SCRAPER, 1962 to 1965, for 6-1/2 x 20 in. press wheel
1шт.
5
622850R1
SCRAPER, for 8 x 20 in. press wheel
1шт.
BOLT W/NUT, 3/8 x 1-1/2 crg
1шт.
6
PO27879
SCRAPER, 1962 to 1965, for 16 in. press wheel
1шт.
7
PO27883
BOLT, scraper 3/8 x 3-3/4 bent sq-hd mach, special, for 16 in. press wheel
1шт.
NLS
NO LONGER SERVICED
NUT, 3/8 wing, Serial Range: 1962-1965
1шт.
Q1504
WASHER
13/32 x 7/8 x 16 ga
1шт.
8
523237R12
ARM, scraper, 1962 to 1965, for 16 in. press wheel
1шт.
BOLT W/NUT, 1/2 x 2 crg
1шт.
WASHER, 1/2 lock
1шт.
9
468490R91
ARM, scraper, for 6-1/2 x 20 x 8 x 20 in. press wheel
1шт.
BOLT W/NUT, 1/2 x 2-1/4 crg
1шт.
WASHER, 1/2 lock
1шт.
10
POW457B
WHEEL W/FITTING, for 16 in. press wheel
1шт.
10
471246R91
NO LONGER SERVICED
WHEEL W/FITTING, for 20 in. press wheel
1шт.
10
524331R92
WHEEL W/FITTING, for 20 in. press wheel
1шт.
PO19374
RIVET, 3/8 x 25/32, special
12шт.
Выбрано товаров: 38
