Запчасти Case IH 188 (C-17) - RUNNER OPENER

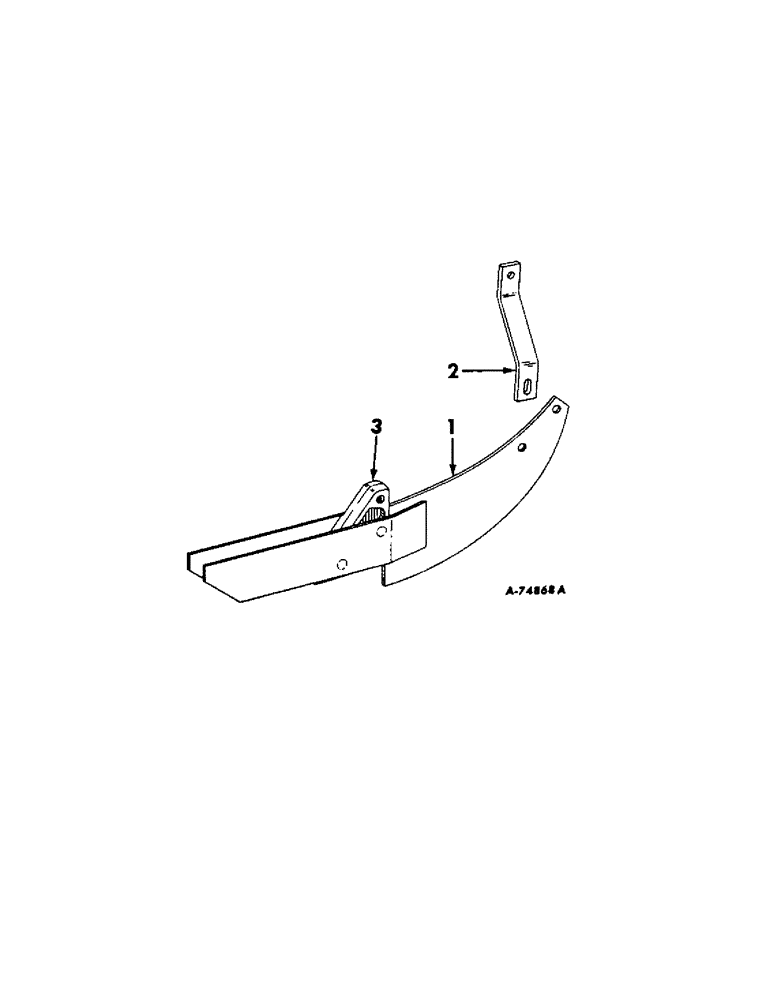

Схема запчастей Case IH 188 - (C-17) - RUNNER OPENER
3
2
1

Артикул

Название

Примечание

Количество

1

468431R93

RUNNER W/FROG, order 472260R92

1шт.

1

472260R92

OPENER

RUNNER W/FROG

1шт.

2

468437R1

BRACE, runner

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 mach

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

102637

NUT,1/2"-13, G5

1шт.

3

471212R1

FROG, runner, order 472258R1

1шт.

3

472258R1

FROG, runner

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 mach

1шт.

20156R1

RIVET, 3/8 x 2-5/16 74 deg csk-hd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

Выбрано товаров: 16
