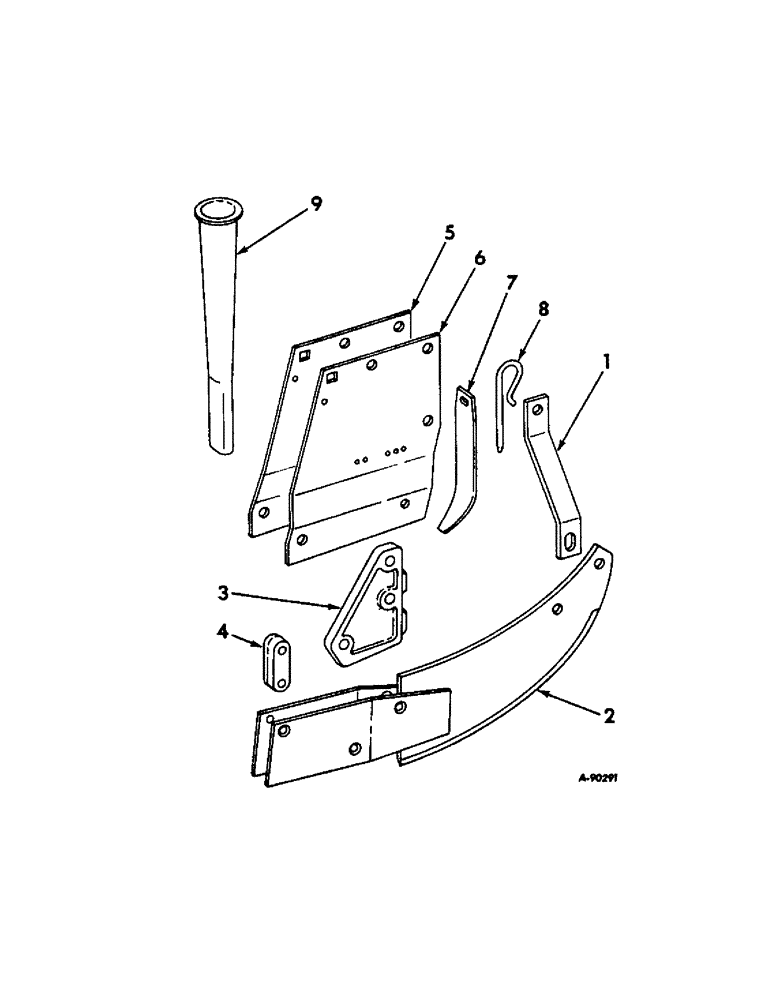

Запчасти Case IH 188 (C-17[A]) - RUNNER OPENERS FOR DRILL PLANTERS

1

468437R1

BRACE, runner

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd mach

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

489403R91

OPENER

ASSY, runner

1шт.

3

489404R1

FROG, runner

1шт.

4

489406R1

BLOCK

runner

1шт.

22268R1

RIVET, 3/8 x 1-1/2 74 deg C-Z csk-hd

1шт.

22269R1

RIVET, 3/8 x 1-13/16 74 deg C-Z csk-hd

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

472238R4

SHEET, rail side LH

1шт.

6

472239R4

SHEET, rail side RH

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

490029R1

COVER, valve front

1шт.

8

471207R1

PIN

quick attachable cot.

1шт.

9

489400R1

TUBE

seed

1шт.

22262R1

PIN, 1/8 x 2-3/4 C-Z cot.

2шт.
