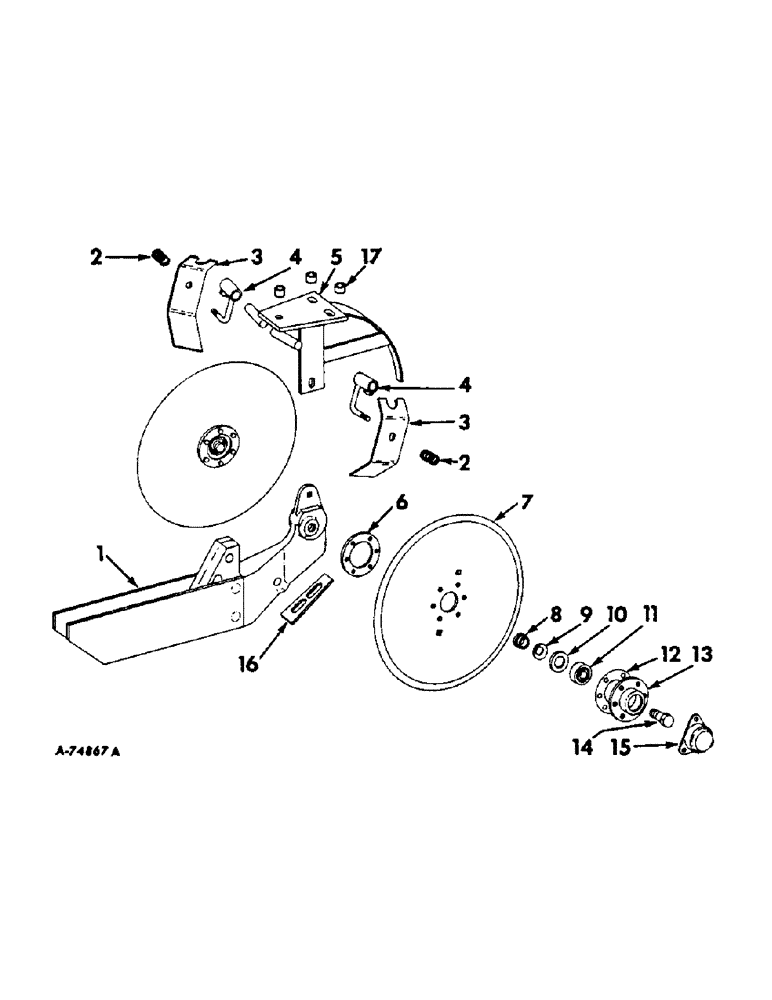

Запчасти Case IH 188 (C-15) - DOUBLE DISK OPENER AND SCRAPER, HILL DROP

1

474341R91

OPENER

RUNNER, double disk, 1963 and since

1шт.

1

471232R11

RUNNER, double disk, Serial Range: 1962-1963

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

RIVET, 3/8 x 2-5/16 74 deg csk-hd

2шт.

WASHER, 1/2 lock

1шт.

2

6633

SPRING

1шт.

3

471240R1

SUPPORT

SCRAPER, disk

1шт.

4

474344R91

SPACER

scraper

1шт.

4

471237R91

BRACKET

W/SET SCREW, scraper, order 474344R91

1шт.

NUT, 5/16

2шт.

102894

SET SCREW

3/8 x 3/4 cup-pt sq-hd set

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

5

471220R91

SHIELD, double disk opener

1шт.

BOLT W/NUT, 5/16 x 7/8 crg

1шт.

BOLT W/NUT, 7/16 x 1-3/4 crg

2шт.

BOLT W/NUT, 7/16 x 1-3/4 mach

1шт.

WASHER, 7/16 lock

3шт.

WASHER, 11/32 x 3/4 x 16 ga

1шт.

W6652

WASHER

15/32 x 1 x 6 ga

2шт.

6

464480R1

WASHER

WASHER, reinforcement

1шт.

7

471235R1

DISC

DISK, opener

1шт.

8

602988R1

SPACER

seal retainer

1шт.

9

464628R1

SEAL

1шт.

10

602994R1

FLANGE

corrosion prevention

1шт.

11

602996R91

BEARING

ball

1шт.

12

602992R1

GASKET

disk

1шт.

13

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

1шт.

SCREW, 1/4 x 1/2 C-Z cap

3шт.

WASHER, 1/4 C-Z lock

3шт.

14

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, bearing disk, RH thd

1шт.

14

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, bearing disk, LH thd

1шт.

15

464483R1

CYLINDER END CAP

CAP, disk bearing

1шт.

SCREW, 1/4 x 1/2 C-Z cap

3шт.

16

471231R1

SCRAPER, inside, Serial Range: 1962-1963

1шт.

16

478203R1

BAR

SCRAPER, inside, 1964 and since

1шт.

BOLT, 3/8 x 3/4 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

17

SA2172

SPACER,3/8" Pipe x 1/2"

replaces M85542

3шт.
