Запчасти Case IH 188 (C-12) - PLANTER ATTACHING UNIT

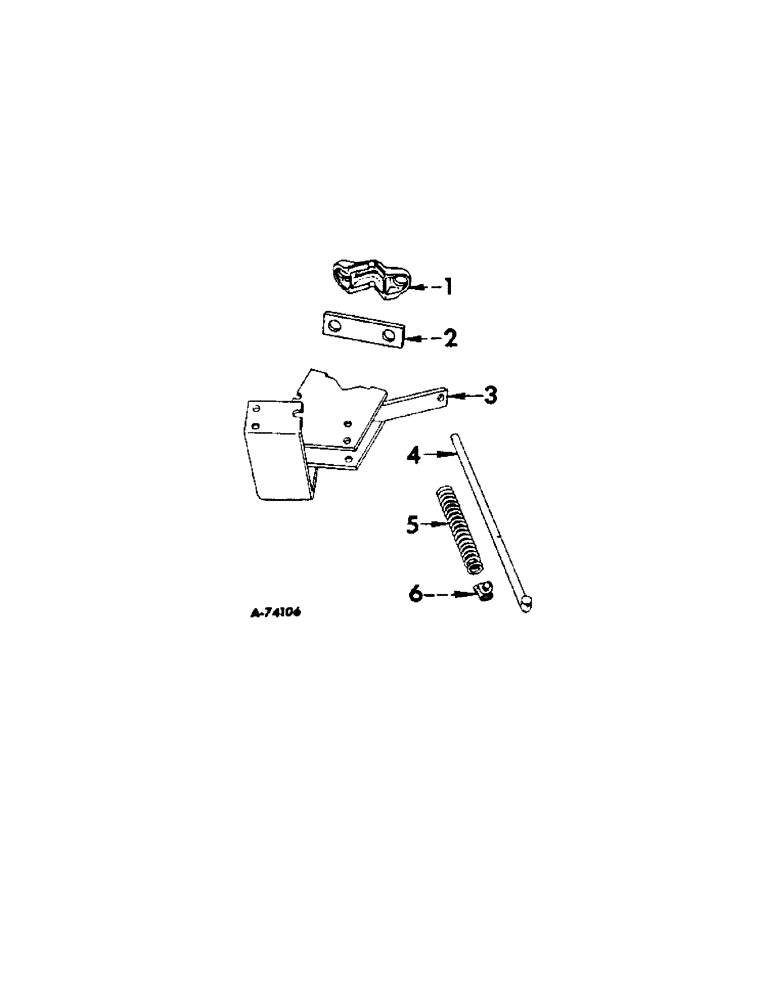

Схема запчастей Case IH 188 - (C-12) - PLANTER ATTACHING UNIT
6
1
2
4
5
3

Артикул

Название

Примечание

Количество

1

518859R1

CLAMP

CAP, attaching, for 1-3/4, 2 and 2-1/4 sq tool bar with sides diagonal

1шт.

2

524707R1

STRAP, tool bar, for 3-1/4 sq tool bar with top and bottom sides horizontal

1шт.

3

464284R92

BRACKET, attaching

1шт.

465001R2

BOLT, 7/8 x 6-1/2 sq-hd mach, 3 in. thd, for 1-3/4, 2, 2-1/4 sq tool bar with sides diagonal and 2-1/2 sq tool bar w/round corners

2шт.

13642R1

BOLT, 7/8 x 6-1/2 sq-hd mach, for 3-1/4 sq tool bar with top and bottom sides horizontal

2шт.

NUT, 7/16

2шт.

4

464277R1

GUIDE

ROD, lift

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

5

523267R1

SPRING

pressure rod

1шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

Выбрано товаров: 12
