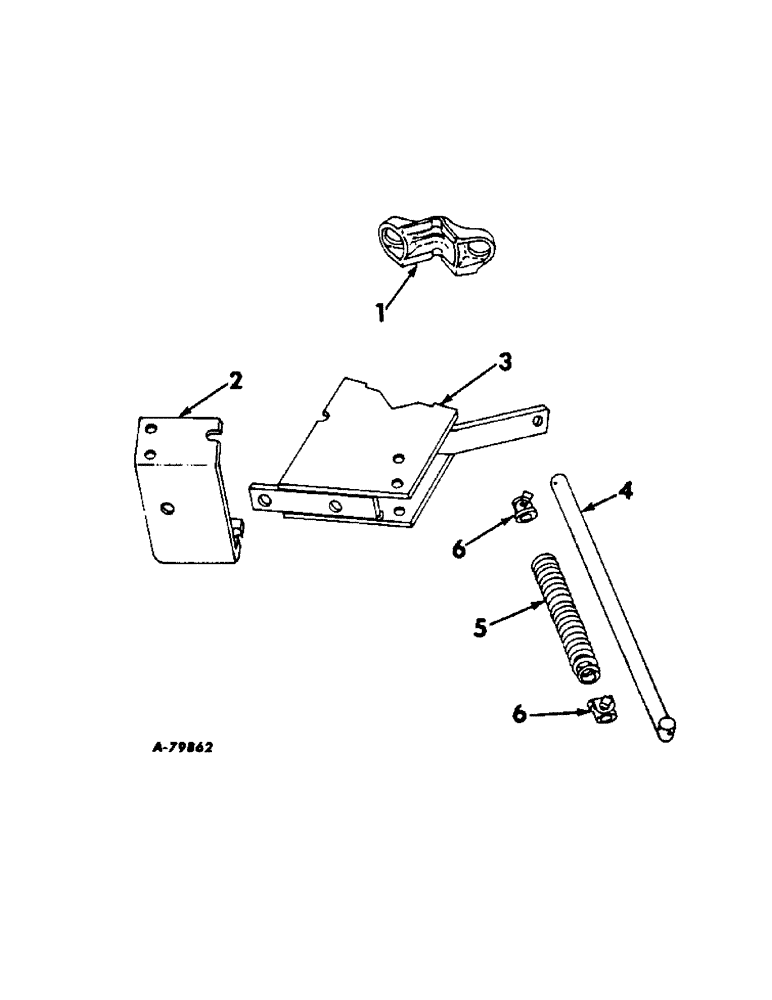

Запчасти Case IH 188 (C-12[A]) - PARTS NECESSARY TO ATTACH 186 AND 188 PLANTERS TO 1-3/4, 2 AND 2-1/4 SQ TOOL BARS MINIMUM TILLAGE PLANTERS

1

518859R1

CLAMP

CAP, attaching, for 1-3/4, 2 and 2-1/4 sq tool bar with sides diagonal

1шт.

2

477296R1

PLATE, attaching bracket hitch pivot

1шт.

102637

NUT,1/2"-13, G5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

477294R91

BRACKET ASSY, attaching

1шт.

465001R2

BOLT, 7/8 x 6-1/2 sq-hd mach, 3 in. thd

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

4

477293R1

ROD, lift

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

5

523267R1

SPRING

pressure rod

1шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

2шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

2шт.
