Запчасти Case IH 188 (C-11) - PLANTER ATTACHING UNIT, GAUGE WHEEL CONTROLLED FLEXIBLE ATTACHING UNIT, FOR 2-1/4 SQUARE TOOL BAR

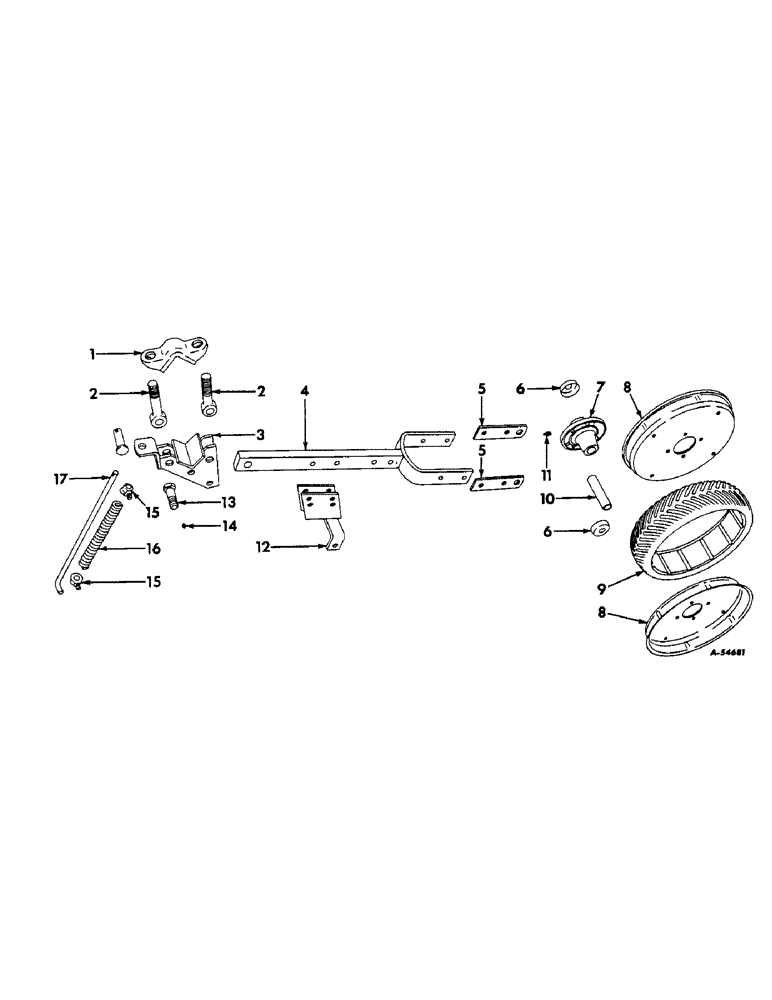

Схема запчастей Case IH 188 - (C-11) - PLANTER ATTACHING UNIT, GAUGE WHEEL CONTROLLED FLEXIBLE ATTACHING UNIT, FOR 2-1/4 SQUARE TOOL BAR
12
10
5
7
15
8
6
9
1
2
6
3
14
8
4
16
5
11
15
13
17
2

Артикул

Название

Примечание

Количество

1

518859R1

CLAMP

CAP, attaching

1шт.

2

519158R2

EYEBOLT, attaching

1шт.

NUT, 7/8

1шт.

PIN, 1/4 x 1-1/4 self-opening cot.

1шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 dld-std-hd

1шт.

3

525294R93

PLATE, attaching

1шт.

BOLT W/NUT, 1/2 x 2-1/4 mach

1шт.

WASHER, 1/2 lock

1шт.

4

525300R11

FRAME, gauge wheel

1шт.

5

526365R1

ARM, gauge wheel support

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 mach

2шт.

17896R1

BOLT, 3/4 x 6-1/4 mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

102637

NUT,1/2"-13, G5

2шт.

220081

NUT

3/4-10 hex

1шт.

6

516569R1

WASHER

COLLAR, sand

1шт.

7

525912R21

HUB W/FITTING, gauge wheel

1шт.

BOLT W/NUT, 5/16 x 1-1/4 mach

4шт.

WASHER, 5/16 lock

4шт.

8

517239R1

RIM, gauge wheel half

1шт.

BOLT W/NUT, 5/16 x 1/2 C-Z mach

1шт.

WASHER, 5/16 C-Z lock

2шт.

9

524666R1

TYRE/TIRE

TIRE, zero pressure 4.00 x 16 in.

1шт.

10

519893R1

BUSHING

spindle

1шт.

11

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type straight lub.

1шт.

12

525298R91

BRACKET, hitch pivot

1шт.

BOLT W/NUT, 1/2 x 2 mach

2шт.

WASHER, 1/2 lock

2шт.

13

522544R2

BOLT

gauge wheel frame pivot, 3/4 x 2-1/2 mach

1шт.

218443

NUT

3/4 jam

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 straight lub.

1шт.

15

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

16

PO23

SPRING

pressure rod, 1-1/16 OD, 10 in. long, 30-1/2 coils

1шт.

17

464281R1

ROD, pressure spring

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

Выбрано товаров: 39
