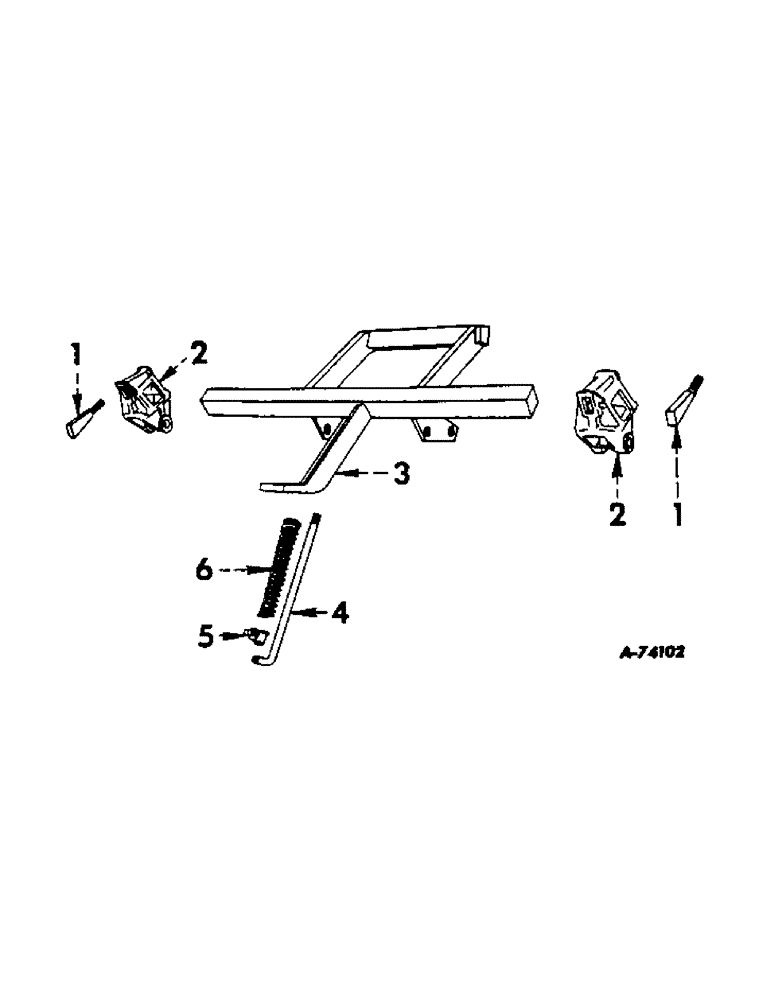

Запчасти Case IH 188 (C-10) - PLANTER ATTACHING UNIT DOUBLE TOOL BAR, PARTS REQUIRED FOR PLANTING UNITS ON 259, 263, 263A, & 463

1

27585B

BOLT

W/NUT, wedge

1шт.

NUT, 1/2

1шт.

2

519283R1

CLAMP, tool bar attaching

1шт.

BOLT W/NUT, 5/8 x 2-3/4 mach

1шт.

3

464283R92

TOOL BAR, double

1шт.

4

464278R1

ROD, pressure

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

6

523267R1

SPRING

pressure rod

1шт.
