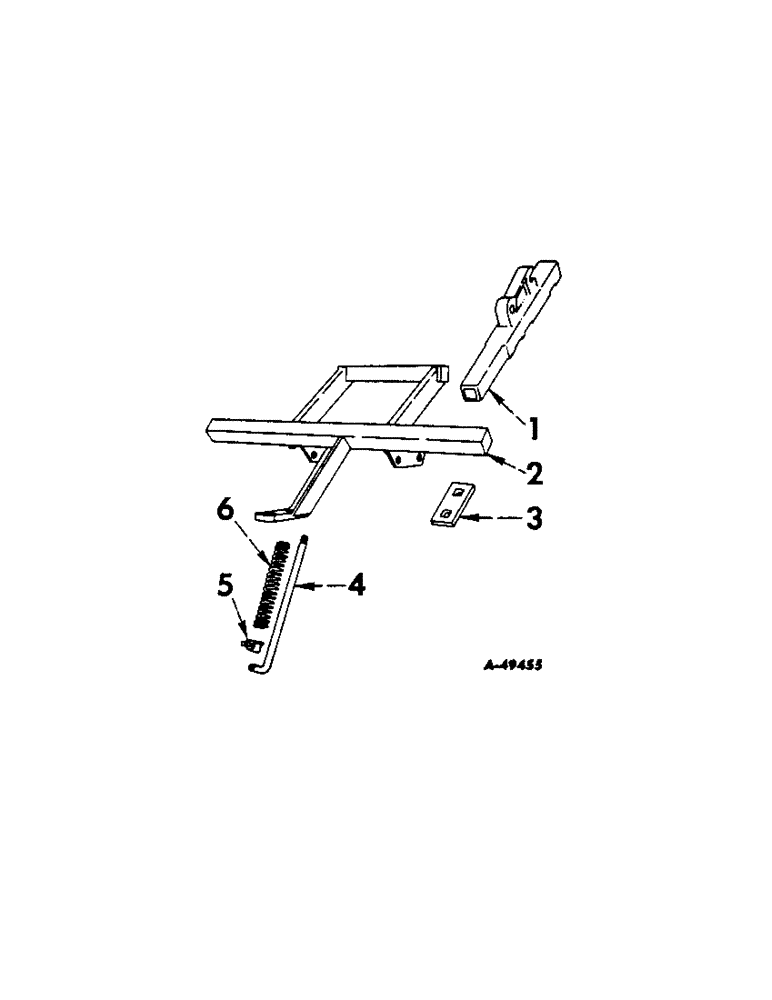

Запчасти Case IH 188 (C-09) - PLANTER ATTACHING UNIT DOUBLE TOOL BAR

1

524912R1

CLAMP, tool bar attaching, not used with 268 or 468 cultivators

1шт.

13418R1

BOLT

5/8 x 3 mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

1шт.

2

464283R92

TOOL BAR, double

1шт.

3

520683R1

CLIP, tool bar attaching, not used with 268 or 468 cultivators

1шт.

4

464278R1

ROD, pressure

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 cup-pt sq-hd set

1шт.

6

523267R1

SPRING

pressure rod

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga, on planter frame hitch bolt

1шт.
