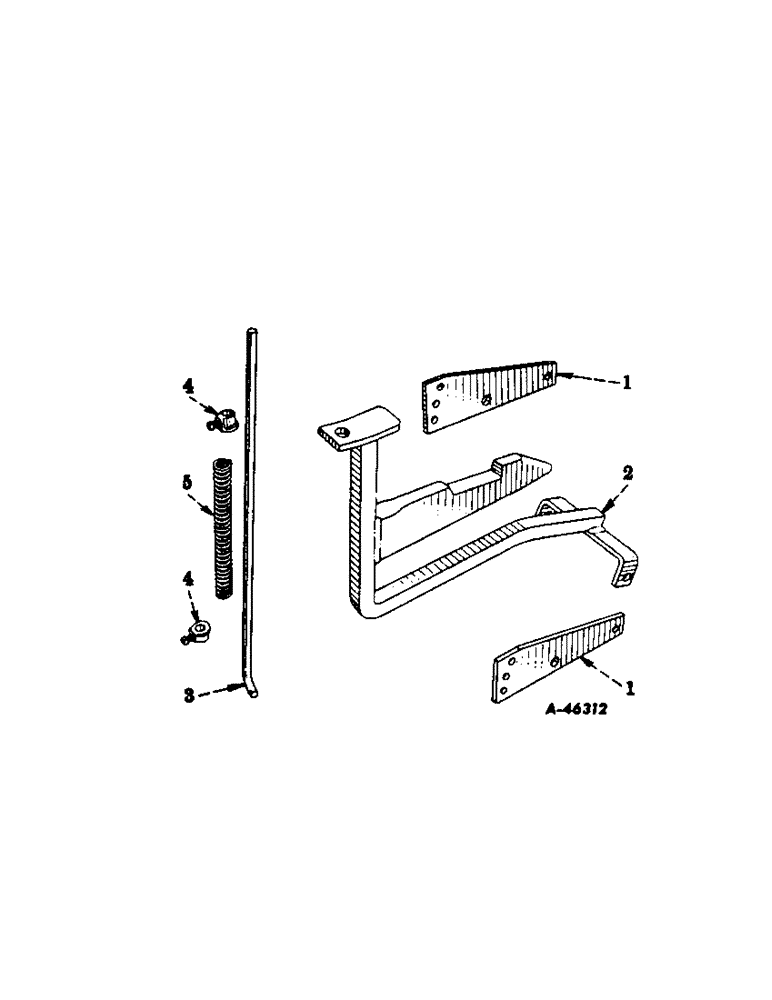

Запчасти Case IH 188 (C-09[A]) - PARTS TO ATTACH 186 AND 188 PLANTERS TO FARMALL CUB, SUPER A, 100, 130 OR 140 TRACTORS EQUIPPED WITH FAST-HITCH

1

623211R1

EXTENSION, planter frame rail

1шт.

BOLT W/NUT, 7/16 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 7/16 lock

1шт.

WASHER, 1/2 lock

1шт.

2

523210R92

BEAM, coupling

1шт.

3

464279R1

ROD, lift

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, lift rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREWm 1/2 x 5/8 cup-pt sq-hd set

1шт.

5

PO23

SPRING

lift rod pressure

1шт.
