Запчасти Case IH 187 (D-06) - TOOL BAR AND CHAIN GUARD, 1959 TO 1966

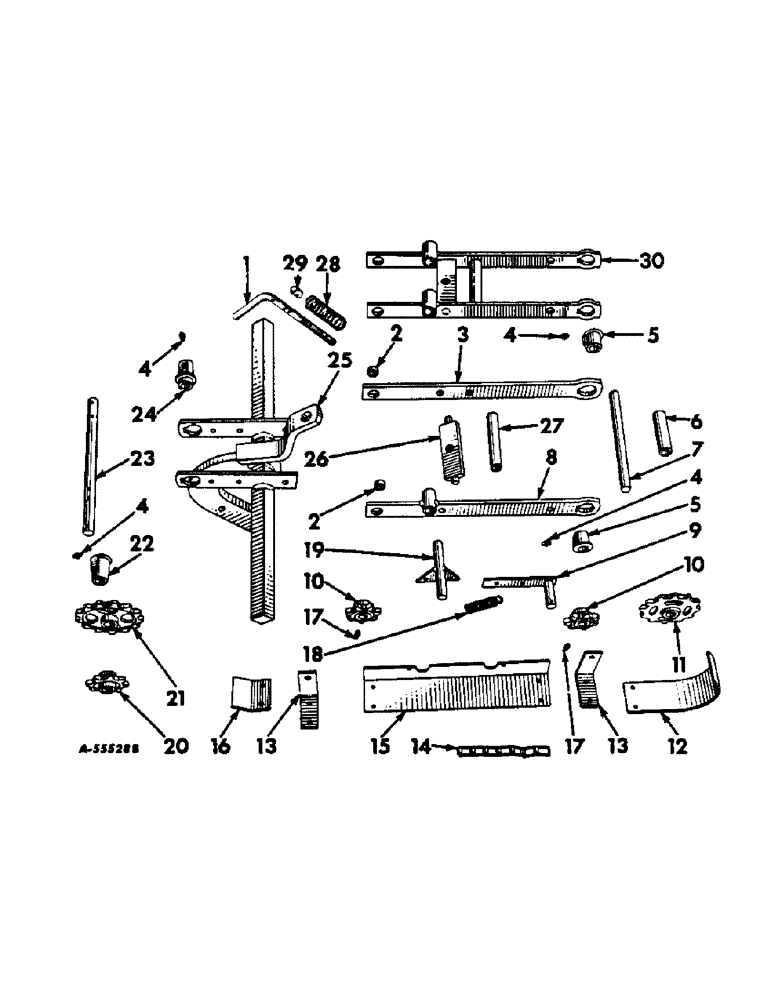

Схема запчастей Case IH 187 - (D-06) - TOOL BAR AND CHAIN GUARD, 1959 TO 1966
28
10
27
23
30
18
25
5
6
14
29
15
16
3
9
13
19
24
17
4
7
13
12
22
10
11
4
17
1
8
2
4
2
5
4
26
20
21

Артикул

Название

Примечание

Количество

1

526673R2

CRANK, adjusting

1шт.

PIN, 1/4 x 1 self-opening cotter

1шт.

NUT, 5/8

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

WASHER, 21/32 x 1-1/2 x 11 ga

1шт.

2

25020B

BUSHING, frame pivot

1шт.

3

526679R1

ARM, drive wheel inside, Serial Range: 1959-1960

1шт.

4

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

PO2507

BEARING

axle

1шт.

6

525306R2

BUSHING, spindle

1шт.

7

526675R1

AXLE, drive wheel

1шт.

WASHER, 25/32 x 1-1/4 x 16 ga

2шт.

8

526680R11

ARM, drive wheel, Serial Range: 1959-1960

1шт.

BOLT W/NUT, 1/2 x 6-1/2 crg

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

WASHER, 1/2 lock

2шт.

9

526699R11

ARM, chain tightener

1шт.

PIN, 3/16 x 1-1/4 self-opening cotter

1шт.

10

PO3089

DRIVE SPROCKET

SPROCKET, idler, 7-T

1шт.

11

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 cup-pt sq-hd

1шт.

12

526689R1

END, lower chain guard

1шт.

BOLT W/NUT, 1/4 x 3/4 mach

2шт.

WASHER, 1/4 lock

2шт.

13

526697R1

BRACKET, chain guard attaching

1шт.

BOLT W/NUT, 1/4 x 5/8 mach

1шт.

WASHER, 1/4 lock

1шт.

14

CHAIN, main drive, use 52 no. 32 steel links from a 10 ft roll no. CS-32

1шт.

15

526691R1

GUARD, chain

1шт.

PIN, 1/4 x 1 self-opening cotter

1шт.

16

526690R1

END, upper chain guard

1шт.

BOLT W/NUT, 1/4 x 3/4 mach

2шт.

WASHER, 1/2 lock

2шт.

17

110161

FITTING, 3/16 straight drive type lub

1шт.

18

PO16

SPRING

chain tightener, 25/32 OD x 3-7/16 long, 27-1/2 coils

1шт.

19

526701R91

BRACKET, pivot

1шт.

BOLT W/NUT, 1/4 x 5/8 mach

2шт.

NUT, 1/4

2шт.

WASHER, 1/4 lock

2шт.

PIN, 1/4 x 1-1/4 self-opening cotter

2шт.

20

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, 8-T

1шт.

102893

SCREW, 3/8 x 5/8 sq-hd cup-pt set

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

21

PO3215X

SPROCKET ASSY.

SPROCKET W/SET SCREW, 13-T

1шт.

102894

SET SCREW

3/8 x 3/4 sq-hd cup-pt set

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

22

PO1818

BUSHING

BEARING, countershaft

1шт.

23

526674R1

COUNTERSHAFT

1шт.

PIN, 1/4 x 1-1/4 self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 x 16 ga

2шт.

24

523247R1

BEARING, countershaft

1шт.

25

526694R92

TOOL BAR

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

WASHER, 1/2 lock

2шт.

WASHER, 17/32 x 1-1/4 x 16 ga

2шт.

26

517229R1

SWIVEL, adjusting screw, Serial Range: 1959-1960

1шт.

27

526692R1

SPACER, drive wheel frame, Serial Range: 1959-1960

1шт.

28

957199R1

SPRING, pressure

1шт.

29

462092R1

BUSHING, depth stop

1шт.

30

462991R91

FRAME, drive wheel

1шт.

Выбрано товаров: 62
