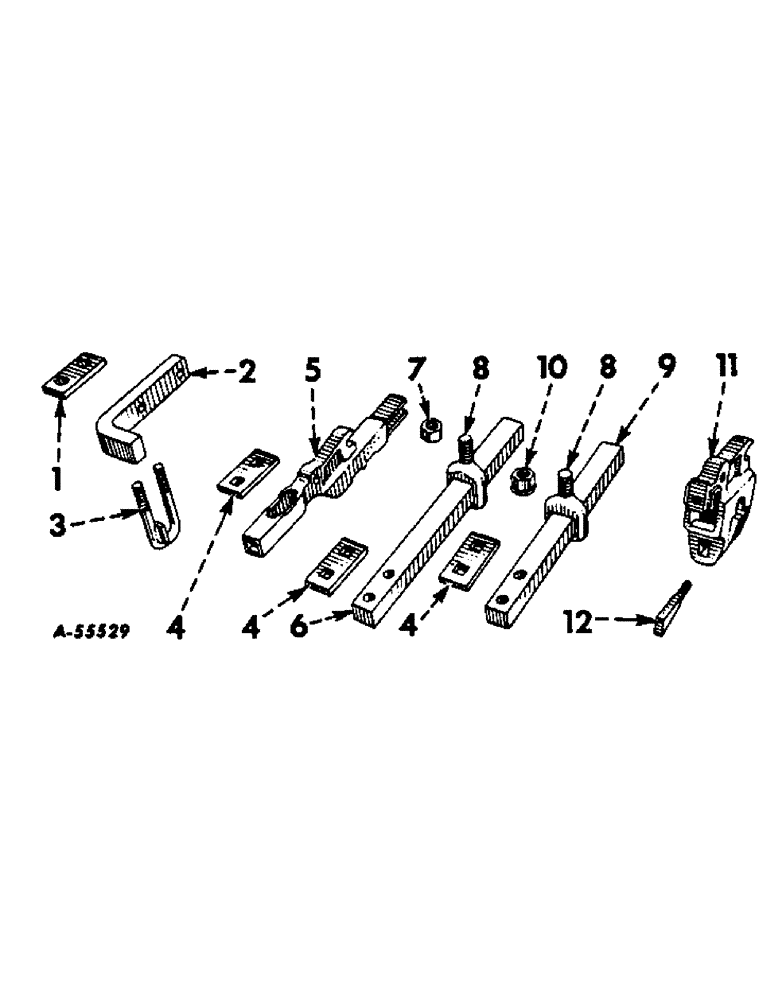

Запчасти Case IH 187 (D-04) - PLANTER ATTACHING UNITS

1

526762R1

CLIP, u-bolt

1шт.

To adapt no. 187 planter unit to the 266 or 466 cultivator

1шт.

2

526760R1

BAR, attaching

1шт.

To adapt no. 187 planter unit to the 266 or 466 cultivator

1шт.

3

526758R11

U-BOLT W/NUTS, attaching

1шт.

NUTS, 5/8

2шт.

To adapt no. 187 planter unit to the 266 or 466 cultivator

1шт.

4

520683R1

CLIP, tool bar attaching

1шт.

BOLT W/NUT, 5/8 x 4 crg

2шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

To adapt no. 187 planter unit to the 261, 263, 263A, 463, 465A, and the four inside rows for 665A cultivator

1шт.

To adapt no. 187 planter unit to the 2C-254A or K-254 cultivator

1шт.

To adapt 34-255, H-255, M-255, 34-455A, H-455A and M-455A cultivators

1шт.

5

523578R1

CASTING, tool bar attaching

1шт.

To adapt no. 187 planter unit to the 261, 263, 263A, 463, 465A, and the four inside rows for 665A cultivator

1шт.

6

526757R11

TOOL BAR, attaching

1шт.

To adapt no. 187 planter unit to the 2C-254A or K-254 cultivator

1шт.

7

30537B

NUT

conical, hex-hd 7/8

1шт.

To adapt no. 187 planter unit to the 2C-254A or K-254 cultivator

1шт.

8

518255R1

EYEBOLT, tool bar attaching

1шт.

To adapt no. 187 planter unit to the 2C-254A or K-254 cultivator

1шт.

9

521268R11

TOOL BAR, attaching

1шт.

To adapt 34-255, H-255, M-255, 34-455A, H-455A and M-455A cultivators

1шт.

10

518959R1

NUT, 7/8 spec hex

1шт.

To adapt 34-255, H-255, M-255, 34-455A, H-455A and M-455A cultivators

1шт.

11

522558R1

CLAMP, tool bar attaching

1шт.

Required to adapt no. 187 planter units to the 665A cultivator outside rows

1шт.

12

27585B

BOLT

wedge

1шт.

Required to adapt no. 187 planter units to the 665A cultivator outside rows

1шт.

NUT, 1/2

1шт.
