Запчасти Case IH 187 (D-21[B]) - CORN PLANTING EQUIPMENT, FOR COMBINATION HOPPER

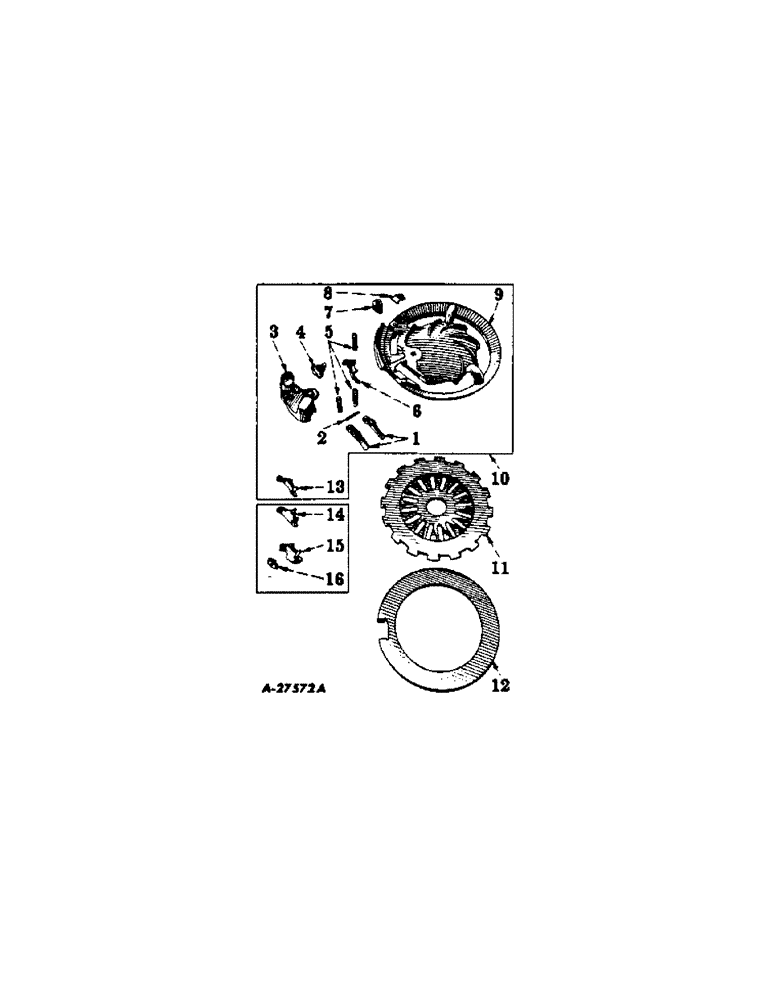

Схема запчастей Case IH 187 - (D-21[B]) - CORN PLANTING EQUIPMENT, FOR COMBINATION HOPPER
6
15
11
2
12
1
9
8
5
7
10
16
14
13
3
4

Артикул

Название

Примечание

Количество

1

622184R91

PAWL

ASSEMBLY, inner and outer cut-off

1шт.

1

622278R91

JAW

PAWL ASSEMBLY, inner and outer cut-off, for use with segmented or decorticated beet seed plates, special

1шт.

2

2000AA

PIN

cut-off pawl hinge

1шт.

3

621727R3

CAP

cut-off and knocker

1шт.

BOLT W/NUT, 5/16 x 3/4 crg

1шт.

4

621728R2

SEAT

adjusting knocker

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

1шт.

WASHER, 9/32 x 5/8 x .065

1шт.

5

2064A

SPRING

cut-off and knocker, .445 OD, 1-5/8 long, 12 coils

1шт.

6

464336R11

KNOCKER

ARM, roller knocker, 1960 and since

1шт.

6

1118AC

PAWL

knock-out, for corn and beans, order 464336R11

1шт.

7

622124R3

HOLDER

RETAINER, filler ring

1шт.

NUT, 1/4 sq

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 slt-rd-hd mach

1шт.

WASHER, 1/4 external tooth csk lock

1шт.

8

13607AB

HINGE

GATE, hinge

1шт.

9

BOTTOM, hopper, order 622176R97

1шт.

10

622186R97

BOTTOM

ASSEMBLY, hopper

1шт.

11

PLATE, seed, see seed plates

1шт.

12

RING, filler, see seed plates

1шт.

13

3460AC

KNOCKER

PAWL, knock-out, for sorghum, kaffir corn, maize, etc.

1шт.

14

1223AB

PAWL

knock-out, special, see note

1шт.

15

43169AA

ARM

W/STUD, roller knocker, special, see note

1шт.

16

3616AA

KNOCKER

tooth roller, for 82-cell plate, special, see note

1шт.

16

464259R1

ROLLER

KNOCKER, roller, 1960 and since

1шт.

Выбрано товаров: 25
