Запчасти Case IH 187 (D-13[A]) - DRIVE WHEEL, 1959 TO 1966

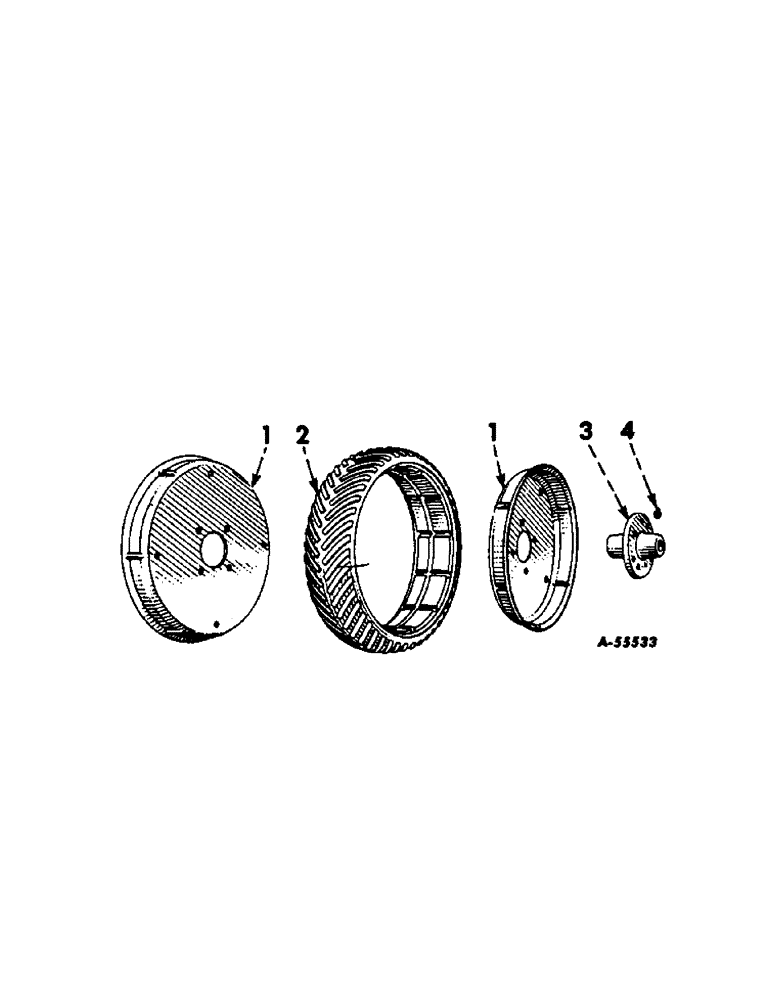

Схема запчастей Case IH 187 - (D-13[A]) - DRIVE WHEEL, 1959 TO 1966
2
1
4
1
3

Артикул

Название

Примечание

Количество

1

517239R1

RIM, wheel half

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

4шт.

WASHER, 5/16 lock

4шт.

2

TIRE, zero pressure, pr., 4 x 16 in. traction tread, machine attachment

1шт.

3

525912R21

HUB ASSY, wheel

1шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/6 x 1-1/4 hex-hd mach

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26184B

PIN, 1/4 x 2-1/16 std #77

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

4шт.

Q399

WASHER

11/32 x 1 x 16 ga

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 straight drive type lub

1шт.

Выбрано товаров: 12
