Запчасти Case IH 187 (D-12) - HILL DROP ATTACHMENT

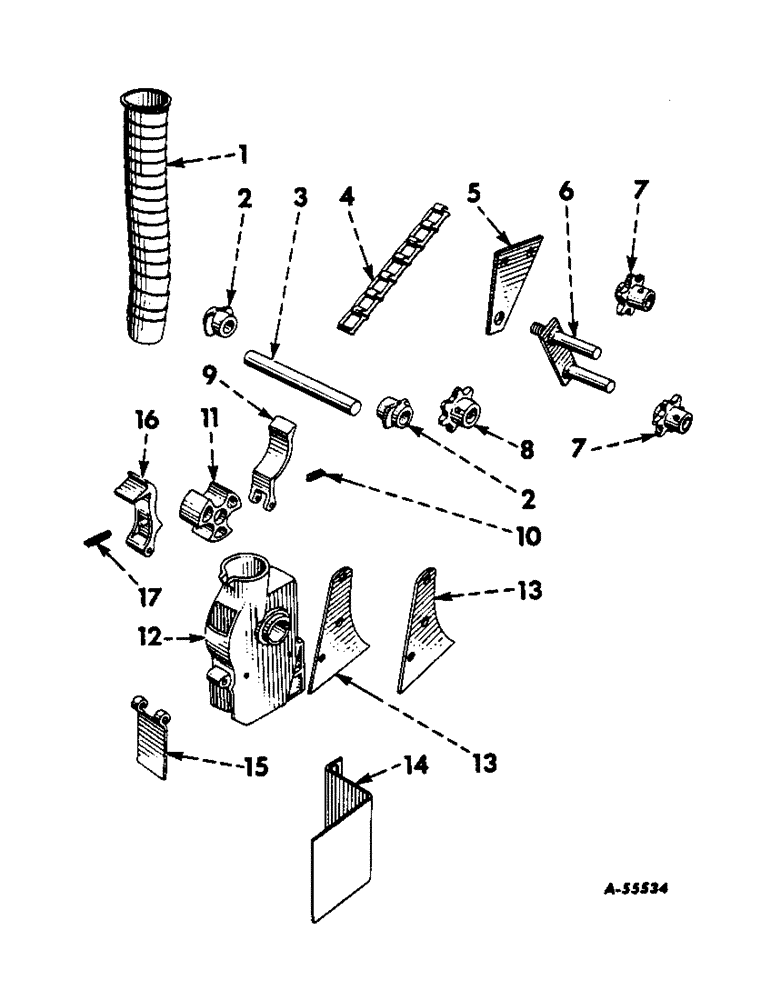

Схема запчастей Case IH 187 - (D-12) - HILL DROP ATTACHMENT
15
12
4
5
9
14
2
13
1
2
8
16
7
17
10
6
13
7
11
3

Артикул

Название

Примечание

Количество

1

526706R1

TUBE, seed, 7 in.

1шт.

BOLT, 5/16 x 1 crg

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

1шт.

WASHER, 11/32 x 3/4 x 16 ga

1шт.

2

516086R1

BEARING, case

1шт.

3

526708R1

SHAFT, distributor roller

1шт.

PIN, 1/4 x 1-1/4 self-opening cotter

1шт.

WASHER, 25/32 x 1-1/4 x 16 ga

2шт.

4

CHAIN, drive, use 61 no. 25 steel links from 10 ft roll no. CS-25

1шт.

5

526702R1

PLATE, attaching

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

6

526705R11

ARM, chain tightener

1шт.

NUT, 5/8

1шт.

PIN, 3/16 x 1 self-opening cotter

2шт.

WASHER, 5/8 lock

1шт.

7

PO1997

SPROCKET, 6-T for no. 25 steel chain

1шт.

8

512235R1

SPROCKET, 7-T for no. 25 chain

1шт.

8

PO3156

SPROCKET, 8-T for no. 25 chain

1шт.

8

515861R1

SPROCKET, 9-T for no. 25 chain

1шт.

8

515862R1

SPROCKET, 10-T for no. 25 chain

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

9

PO1994

DEFLECTOR, front

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q3517

HEADED PIN,1/4" x 2 1/8"

PIN, 1/4 x 2-1/8 dld-std-hd

1шт.

10

PO51

SPRING

front deflector compression, 3/8 OD x 7/8 long, 8 coils

1шт.

11

516090R1

ROLLER, distributor

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

1шт.

12

516089R1

CASE, hill drop

1шт.

13

515923R1

PLATE, case attaching

1шт.

BOLT W/NUT, 3/8 x 2-1/4 mach

1шт.

14

526707R1

GUARD, chain

1шт.

WASHER, 15/32 x 1 x 16 ga

2шт.

15

PO16642A

VALVE, runner heel

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 dld-std-hd

1шт.

16

PO1993

DEFLECTOR, rear

1шт.

PIN, 1/8 x 3/4 self-opening cotter

1шт.

Q3517

HEADED PIN,1/4" x 2 1/8"

PIN, 1/4 x 2-1/8 dld-std-hd

1шт.

17

PO140

SPRING

rear deflector compression, 3/8 OD x 1-1/4 in. long, 11 coils

1шт.

Выбрано товаров: 41
