Запчасти Case IH 187 (D-10) - SHOVEL COVERING ATTACHMENT, SPRING TRIP

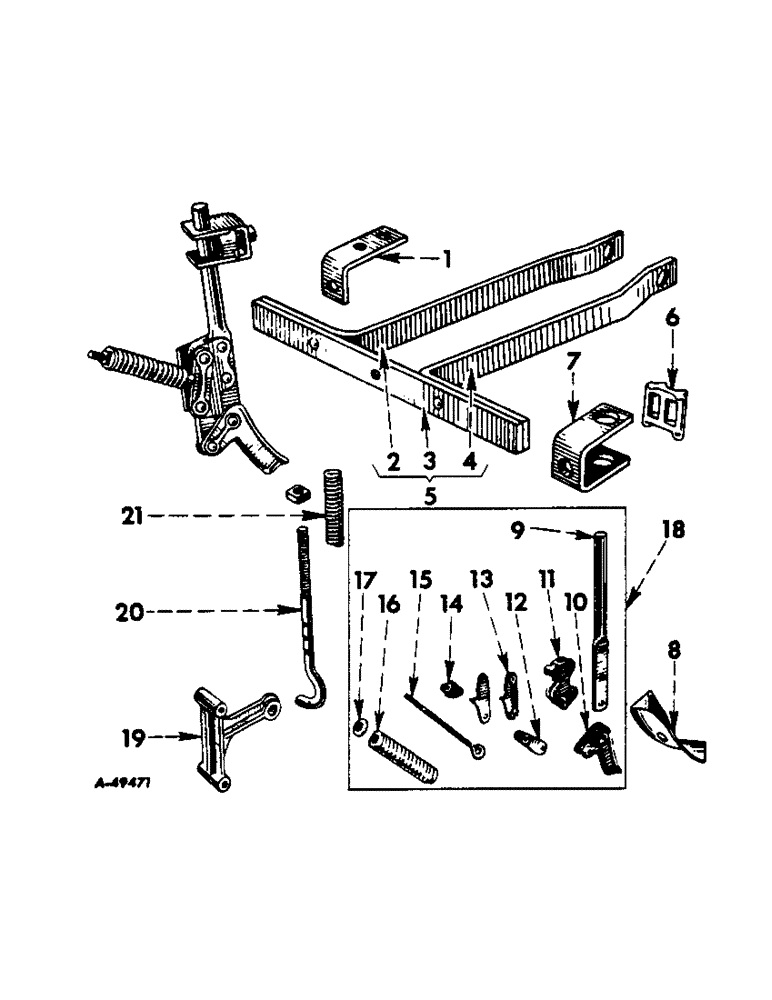

Схема запчастей Case IH 187 - (D-10) - SHOVEL COVERING ATTACHMENT, SPRING TRIP
15
2
6
7
9
3
1
16
19
12
18
20
4
13
5
21
17
11
8
14
10

Артикул

Название

Примечание

Количество

1

PO18466

BRACKET

spring

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

2

517941R1

RAIL, left frame

1шт.

3

PO12855

BAR, covering frame

1шт.

RIVET, 3/8 x 1 csk-hd

2шт.

RIVET, 3/8 x 1-1/8 rd-hd

2шт.

4

517942R1

RAIL, right frame

1шт.

5

517943R91

FRAME, riveted assembly

1шт.

6

PO960

BLOCK

clamp

1шт.

7

PO12856

CLAMP

covering frame

1шт.

517033R1

SQUARE NUT

standard clamp

1шт.

112982

SET SCREW

5/8 x 1-1/2 cup-pt sq-hd set

1шт.

8

26013B

SHOVEL

double point, 2 x 8 in.

1шт.

16237BX

BOLT,Plow, #3 Hd, 3/8" - 16 x 2", Gr 5, W/ Nut & Wshr

W/NUT AND WASHER, 3/8 x 2 special ov-hd

1шт.

WASHER, 15/32 x 1 x 16 ga

1шт.

9

PO17281

STANDARD, covering shovel, 1 in. dia

1шт.

10

6142

TOOL

BREAK-OFF, shovel

1шт.

RIVET, 3/8 x 1-3/8 rd-hd

1шт.

RIVET, 7/16 x 1-3/8 rd-hd

1шт.

11

6146

O-RING

BRACKET, spring

1шт.

RIVET, 3/8 x 1 csk-hd

1шт.

RIVET, 3/8 x 1-3/8 csk-hd

2шт.

12

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

LINK, lower

1шт.

13

6145

JACK

LINK, left upper

1шт.

13

6144

LINK, right upper

1шт.

RIVET, 3/8 x 1-7/8 rd-hd

2шт.

14

6147

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

WASHER, lower spring

1шт.

15

2247X

BOLT W/NUT, spring

1шт.

NUT, 3/8

1шт.

16

PO102

SPRING

1-1/4 OD, 6-1/8 in. long, 16 coils

1шт.

17

PO593

WASHER, upper spring

1шт.

18

PO17226

SPRING TRIP ASSEMBLY

1шт.

19

NLS

NO LONGER SERVICED

ARM, pressure spring rod

1шт.

20

PO18465X

ROD W/NUT, pressure spring

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 self-opening cotter

2шт.

WASHER, 17/32 x 1 x 16 ga

1шт.

21

PO104

VALVE SPRING

SPRING, pressure rod, 27/32 OD, 4 in. long, 17 coils

1шт.

Выбрано товаров: 39
