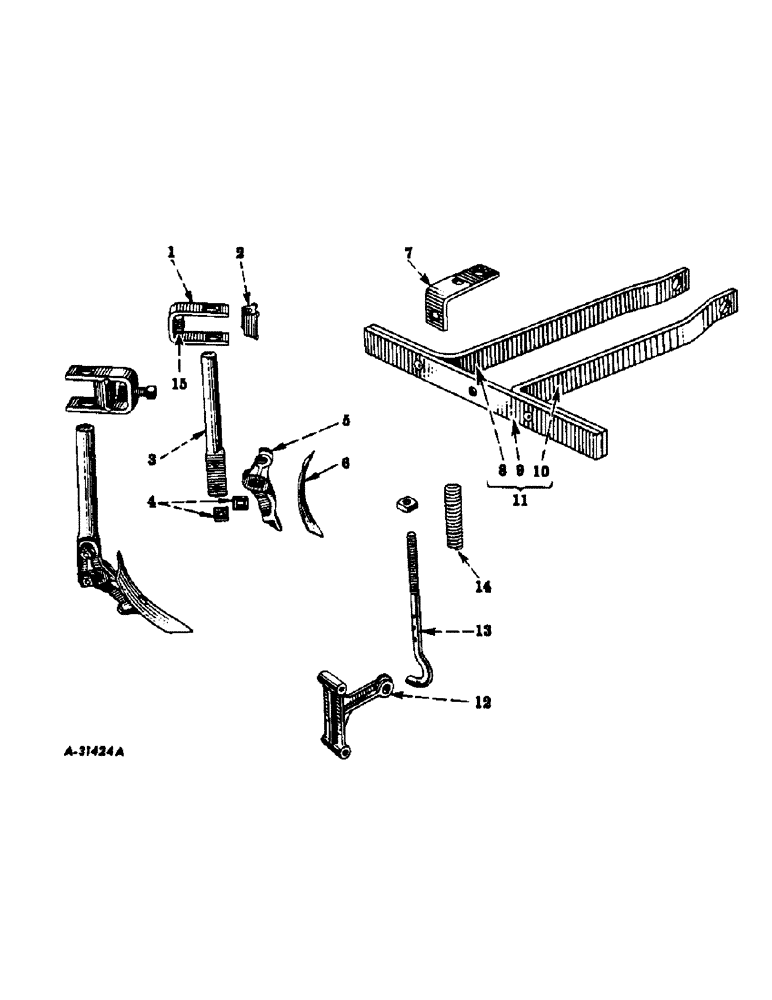

Запчасти Case IH 187 (D-09) - SHOVEL COVERING ATTACHMENT, FRICTION TRIP

1

PO12856

CLAMP

covering shovel standard

1шт.

112982

SET SCREW

5/8 x 1-1/2 cup-pt sq-hd set

1шт.

2

PO960

BLOCK

clamp

1шт.

3

PO28131

STANDARD, break-off

1шт.

4

847

WASHER

corrugated

1шт.

5

PO2644

BRACKET

BREAK-OFF, shovel

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

1шт.

BOLT W/NUT, 3/8 x 2 mach

1шт.

WASHER, 13/32 x 7/8 x 11 ga

2шт.

6

26013B

SHOVEL

double point, 2 x 8 in.

1шт.

16237BX

BOLT,Plow, #3 Hd, 3/8" - 16 x 2", Gr 5, W/ Nut & Wshr

3/8 x 2 special ov-hd

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

102635

NUT,3/8"-16, G5

1шт.

7

PO18466

BRACKET

spring

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

8

517941R1

RAIL, left frame

1шт.

9

PO12855

BAR, covering frame

1шт.

RIVET, 3/8 x 1 csk-hd

2шт.

RIVET, 3/8 x 1-1/8 rd-hd

2шт.

10

517942R1

RAIL, right frame

1шт.

11

517943R91

FRAME, riveted assembly

1шт.

12

NLS

NO LONGER SERVICED

ARM, pressure spring rod

1шт.

13

PO18465X

ROD W/NUT, pressure spring

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 cotter

2шт.

WASHER, 17/32 x 1 x 16 ga

1шт.

14

PO104

VALVE SPRING

SPRING, pressure rod, 27/32 OD, 4 in. long, 17 coils

1шт.

15

517033R1

SQUARE NUT

standard clamp

1шт.
