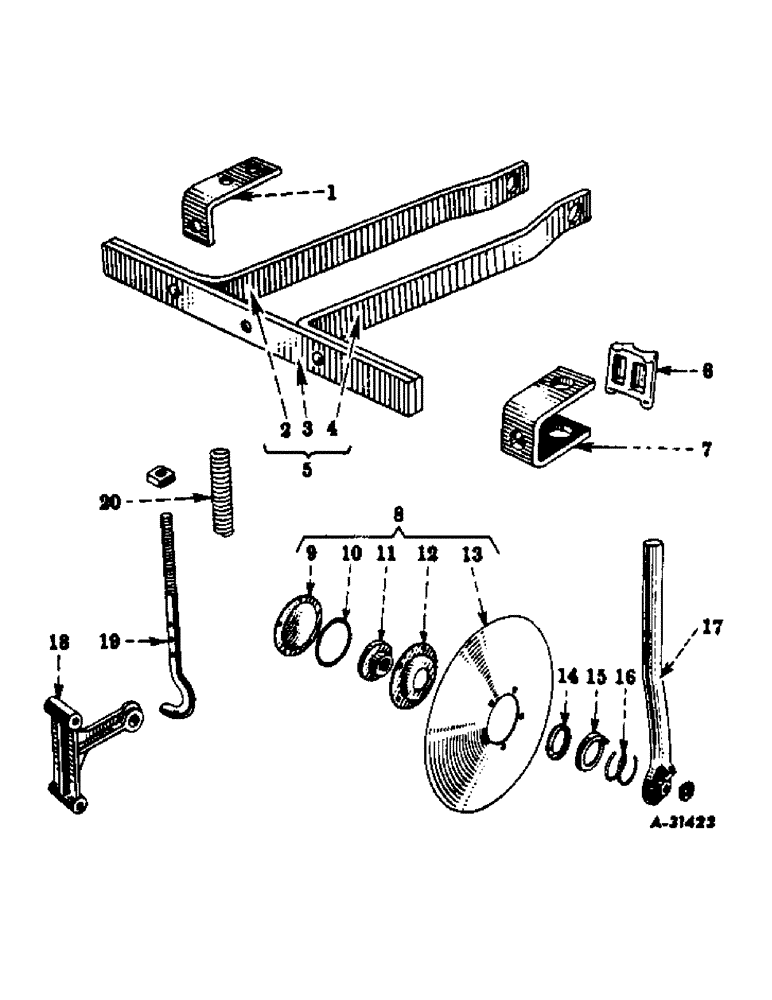

Запчасти Case IH 187 (D-07) - DISK COVERING ATTACHMENT

1

PO18466

BRACKET

spring

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

2

517941R1

RAIL, left frame

1шт.

3

PO12855

BAR, covering frame

1шт.

RIVET, 3/8 x 1 csk-hd

2шт.

RIVET, 3/8 x 1-1/8 rd-hd

2шт.

4

517942R1

RAIL, right frame

1шт.

5

517943R91

FRAME, riveted assembly

1шт.

6

PO960

BLOCK

clamp

1шт.

7

PO12856

CLAMP

frame bar

1шт.

112982

SET SCREW

5/8 x 1-1/2 cup-pt sq-hd set

1шт.

517033R1

SQUARE NUT

clamp

1шт.

8

PO10403

DISK ASSEMBLY

1шт.

9

W7213

PLATE, covering

1шт.

10

M2

WASHER

gasket

1шт.

11

T644

PLATE

BLOCK, bearing

1шт.

BOLT W/NUT, 1/2 x 2-1/4 sq-hd mach

1шт.

12

W4227

HOUSING

HUB, disk

1шт.

13

PO12859

DISK, 12 in. dia

1шт.

RIVET, 1/4 x 5/8 rd-hd

5шт.

14

M10

FELT

WASHER, felt, 1-7/16 x 2-1/8 x 7/32

1шт.

15

T639

WASHER

dust

1шт.

16

PO152

SPRING

1-3/4 OD, 1 in. long, 2 coils

1шт.

17

PO12854

STANDARD, disk

1шт.

PIN, 1/4 x 3/4 self-opening cotter

1шт.

18

NLS

NO LONGER SERVICED

ARM, pressure spring rod

1шт.

19

PO18465X

ROD W/NUT, pressure spring

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1 self-opening cotter

2шт.

WASHER, 17/32 x 1 x 16 ga

1шт.

20

PO104

VALVE SPRING

SPRING, rod pressure, 27/32 OD, 4 in. long, 17 coils

1шт.
