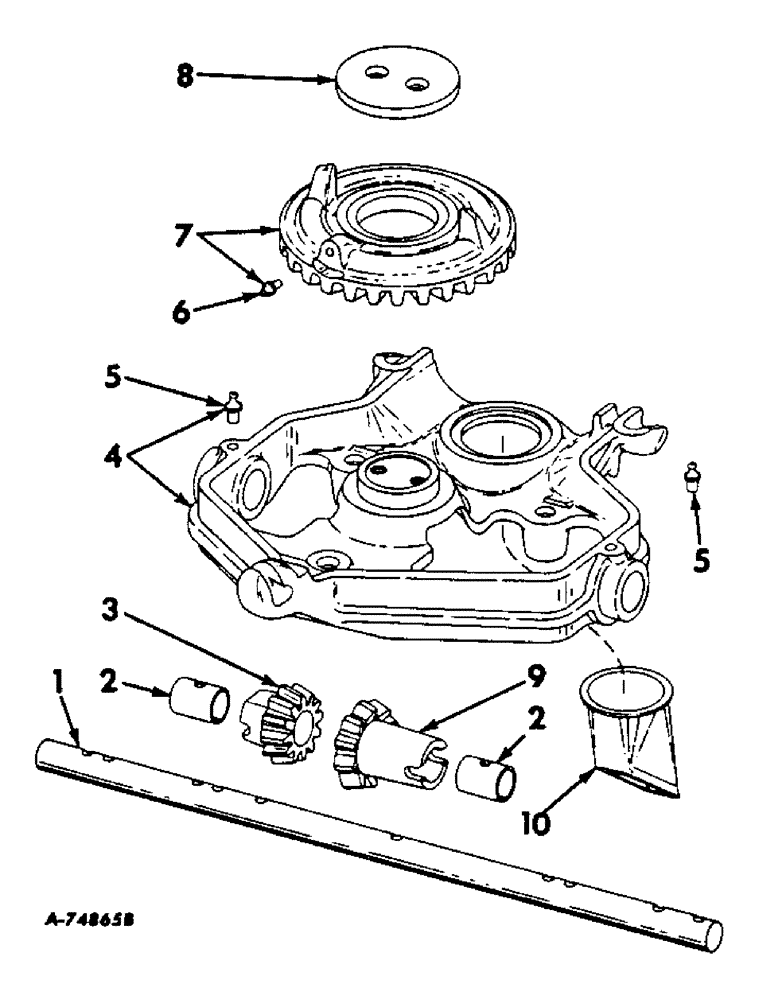

Запчасти Case IH 186 (C-05) - HOPPER DRIVE, FOR 186 PLANTER

1

471197R1

SHAFT, feed

1шт.

1

478088R1

SHAFT, feed, for 16 x 20 in. flat steel press wheel, 186 planter

1шт.

471210R1

PIN

1/4 x 21/32 chamfered std-hd, for sprockets

1шт.

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter

1шт.

PIN, 1/4 x 1-1/4 self-opening cot.

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

33405A

WASHER

WASHER, 25/32 x 1-1/8 x 22 ga

2шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga

2шт.

2

527132R1

BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L

feed shaft, brz

2шт.

13336R1

BOLT, 3/8-16 x 2 sq-hd mach

2шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

1шт.

18898R1

BOLT, 5/16 x 2-1/4 C-Z sq-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 C-Z wing

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

471196R1

GEAR WHEEL

PINION, bevel, 12T

1шт.

PIN, 1/8 x 3/4 self-opening cot.

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd

1шт.

4

468421R21

BRACKET W/LUBRICATION FITTING, hopper

1шт.

5

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 straight drive type lub.

2шт.

6

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 straight drive type lub.

1шт.

7

622120R21

GEAR

W/LUBRICATION FITTING, double ring, 20 and 40T

1шт.

8

462502R1

RETAINER

WASHER, gear retaining

1шт.

NLS

NO LONGER SERVICED

1/4 x 5/8 slt-hex-hd mach

2шт.

WASHER, 1/4 external-tooth lock

2шт.

9

468423R1

GEAR

PINION, bevel, 10T

1шт.

10

468448R1

SPOUT, DISCHARGE

SPOUT, hopper bracket

1шт.
