(B-06[A]) - COVERING BLADE ATTACHMENT, USED 1959 AND SINCE

Запчасти Case IH 185 (B-06[A]) - COVERING BLADE ATTACHMENT, USED 1959 AND SINCE

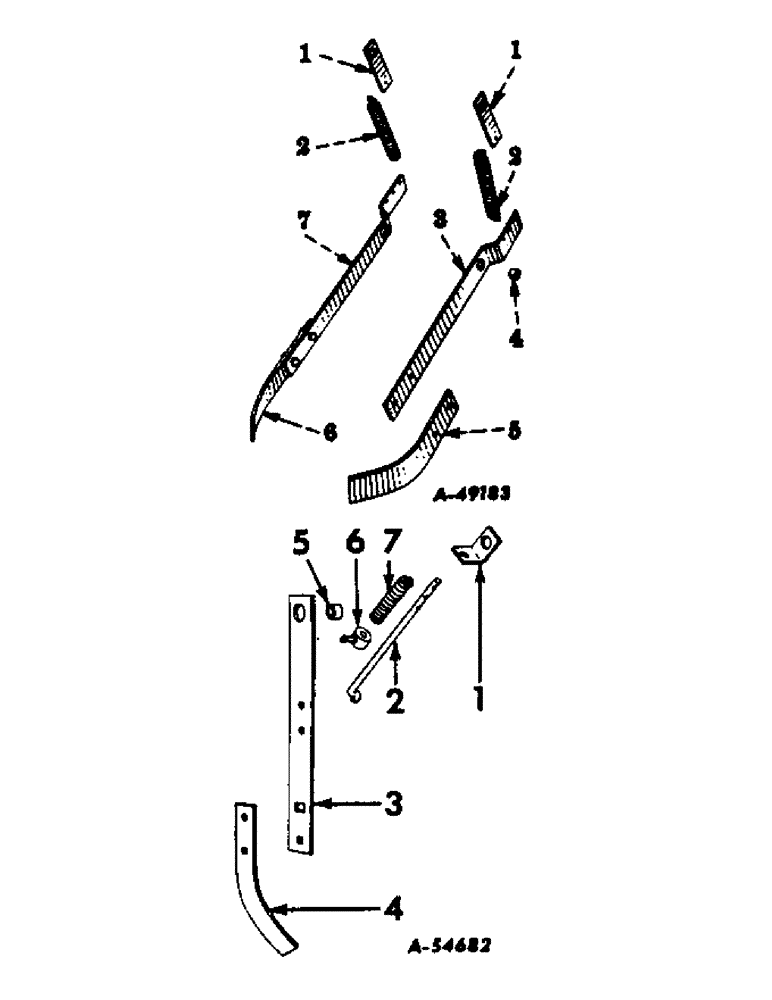

Схема запчастей Case IH 185 - (B-06[A]) - COVERING BLADE ATTACHMENT, USED 1959 AND SINCE
5
1
2
6
1
1
3
5
7
4
3
4
2
6
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

526248R1

ANGLE

BRACKET, pressure rod

1шт.

2

526249R1

ROD

pressure

1шт.

PIN, 1/8 x 3/4 self-opening cot.

1шт.

3

526250R1

BAR

ARM, covering blade

1шт.

WASHER, 17/32 x 1-1/2 x 16 ga

1шт.

4

621582R1

SUPPORT

BLADE, left

1шт.

4

621583R1

BLADE

right

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

2шт.

WASHER, 5/16 lock

2шт.

5

524679R1

BUSHING

arm

1шт.

6

514547R1

COLLAR W/SET SCREW, pressure rod

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 cup-pt sq-hd set

1шт.

7

11100D

SPRING

pressure rod

1шт.
