Запчасти Case IH 185 (B-04) - DRIVE SHAFT, HOUSING AND WHEEL

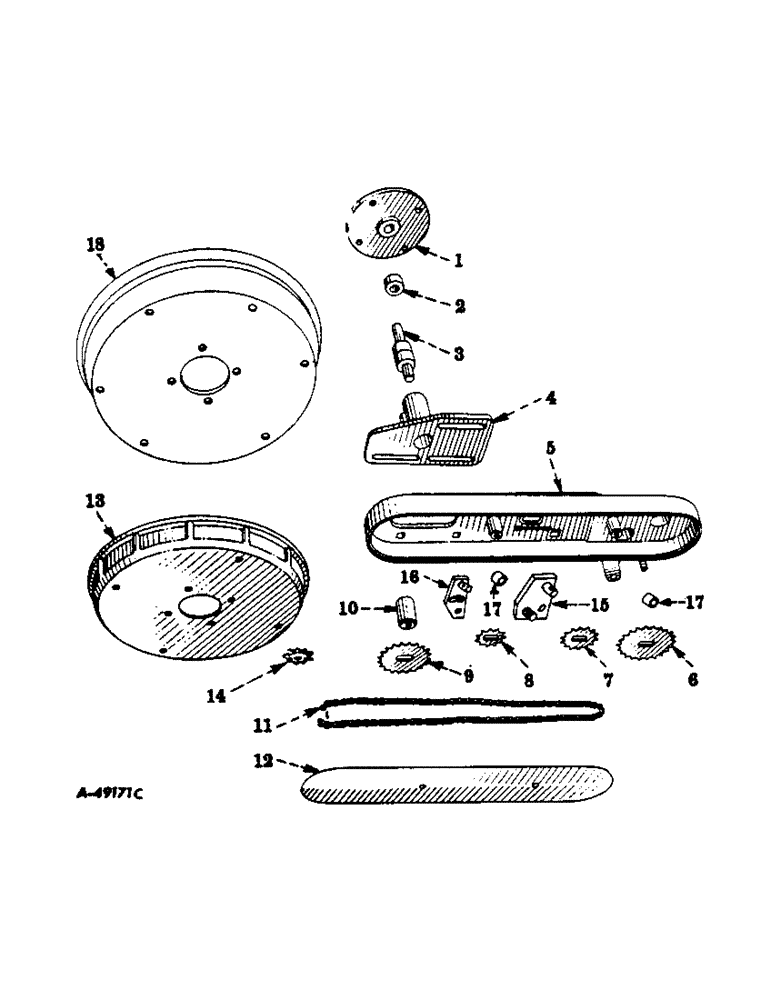

Схема запчастей Case IH 185 - (B-04) - DRIVE SHAFT, HOUSING AND WHEEL
3
11
12
17
17
10
18
1
15
2
8
5
9
14
6
16
13
7
4

Артикул

Название

Примечание

Количество

1

524617R1

HUB

drive wheel

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 fin. hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

524661R1

SEALING WASHER

drive shaft, felt

1шт.

3

ST637

BEARING

W/SHAFT, drive wheel ball

1шт.

4

524616R1

BRACKET

drive shaft

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg upper slot

1шт.

15039R1

BOLT

3/8 x 1-1/2 sq-nk crg lower slot

2шт.

109084

NUT,1/4"-20, G5

1шт.

102928

SCREW, 1/4 x 7/8 sq-hd cone pt set

1шт.

102635

NUT,3/8"-16, G5

3шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

3шт.

5

524623R1

HOUSING, drive, Serial Range: 1958-1962

1шт.

5

471419R1

HOUSING

drive, 1963 and since

1шт.

6

524665R1

SPROCKET ASSY.

SPROCKET, 22-T

1шт.

7

524663R1

SPROCKET ASSY.

SPROCKET, 14-T

1шт.

8

524662R1

SPROCKET ASSY.

SPROCKET, 11-T

1шт.

9

524664R1

SPROCKET ASSY.

SPROCKET, 20-T

1шт.

10

524644R1

HUB

rear drive, Serial Range: 1958-1962

1шт.

BOLT, 3/8 x 5/8 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 7/8 x 16 ga

1шт.

10

471421R1

HUB

rear drive, 1963 and since

1шт.

180168

SCREW,Hex, 1/2" - 13 x 5/8", Gr 5

1/2 x 5/8 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

11

CHAIN, drive, use 2 lengths of 1/2 in. pitch #190 non-std roller chain, 47 & 25 links from 10 ft. roll marked 484914R91, 2 offset links 524792R91 and 2 connecting links 524791R91

1шт.

12

524655R1

COVER, drive housing, Serial Range: 1958-1962

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

WASHER, 3/8 lock

2шт.

12

471420R1

COVER, drive housing, 1963 and since

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

517239R1

RIM, half wheel

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

4шт.

NUT, 5/16 C-Z hex.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

461913R11

SPROCKET, 9-T, Serial Range: 1958-1963

1шт.

14

471435R11

SPROCKET ASSY.

SPROCKET ASSY, 9-T, 1965 and since

1шт.

15

471424R11

PLATE ASSY, idler, for use with combination hopper

1шт.

NUT, 3/8 C-Z hex.

2шт.

12235

ELEC. TERMINAL PIN,3 Pin

PIN, 1/8 x 5/8 cotter

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

6шт.

16

471427R11

ARM ASSY, idler, for use with combination hopper

1шт.

12234R1

PIN, 1/8 x 5/8 cot.

1шт.

17

471428R1

ROLLER

IDLER, roller, for use with combination hopper

2шт.

18

471423R1

DISK, half press wheel

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

524790R91

LINK

roller, see note

4шт.

489469R1

LINK

roller, see note

4шт.

524791R91

LINK

connecting, see note

4шт.

489467R1

LINK

connecting, see note

4шт.

524792R91

LINK

offset, see note

1шт.

524793R91

PIN, offset link, see note

1шт.

Выбрано товаров: 59
