Запчасти Case IH 185 (B-31) - SEMI-AUTOMATIC MARKER, MARKER RODS AND CHAINS / PRODUCT GRAPHICS

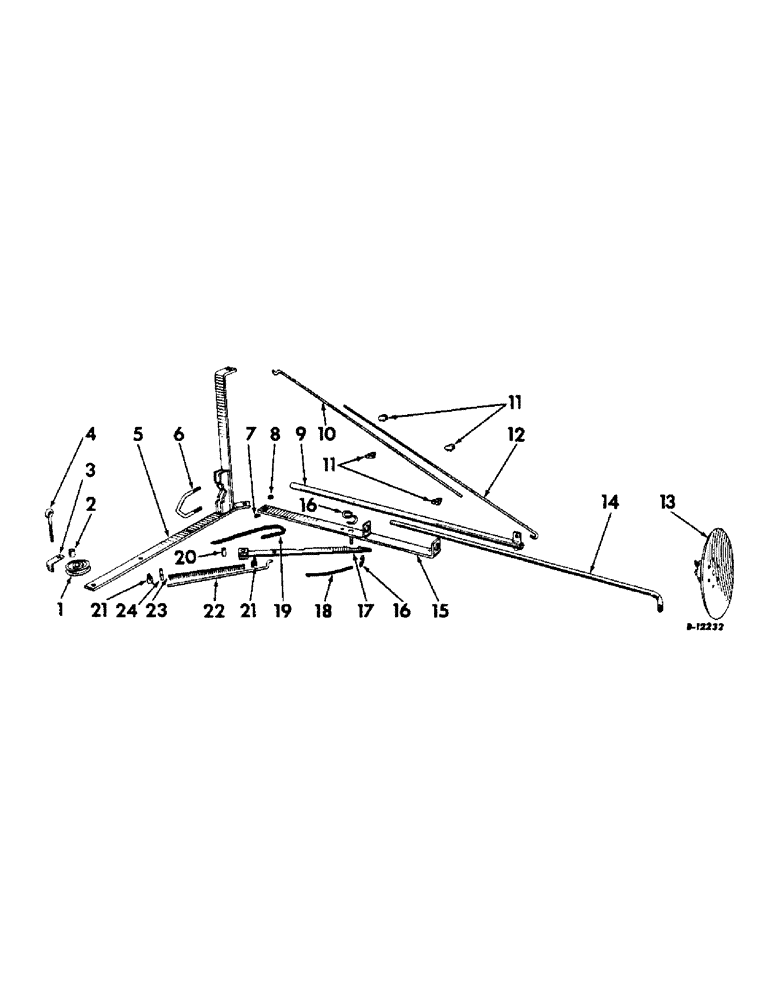

Схема запчастей Case IH 185 - (B-31) - SEMI-AUTOMATIC MARKER, MARKER RODS AND CHAINS / PRODUCT GRAPHICS
19
13
6
22
9
16
18
1
14
8
20
5
15
10
2
11
23
16
3
7
21
11
21
24
12
17
4

Артикул

Название

Примечание

Количество

1

527206R1

SHEAVE

1шт.

2

527207R1

BUSHING, sheave

1шт.

3

527208R1

RETAINER, chain

1шт.

4

527222R11

EYEBOLT ASSEMBLY

1шт.

NUT, 1/2

2шт.

5

527201R91

SUPPORT ASSEMBLY, marker LH

1шт.

5

527202R91

SUPPORT ASSEMBLY, marker RH

1шт.

6

525018R11

BOLT

U-BOLT W/NUTS

1шт.

NUT, 5/8

1шт.

WASHER, 21/32 x 1-1/2 x 16 ga

1шт.

7

PO2193

CLAMP

2шт.

BOLT W/NUT, 1/4 x 1 crg

1шт.

WASHER, 1/4 lock

1шт.

8

527216R1

BUSHING

marker pivot

1шт.

BOLT W/NUT, 5/8 x 1-3/4 mach

1шт.

WASHER, 5/8 lock

1шт.

WASHER, 21/32 x 1-1/2 x 11 ga

1шт.

9

527214R11

PIPE ASSEMBLY, marker

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

10

527218R1

TRUSS, upper

1шт.

11

5938

CLAMP, truss

1шт.

BOLT W/NUT, 3/8 x 2 crg

1шт.

WASHER, 3/8 lock

1шт.

12

527217

TRUSS, lower

1шт.

13

620446R91

DISK ASSEMBLY W/HUB AND BEARING, used with disk marker

1шт.

14

525006R1

SHAFT, marker, used with disk marker

1шт.

14

525008R1

SHAFT, marker, used with shoe marker

1шт.

15

527219R11

ARM ASSEMBLY, pipe adjusting

1шт.

110452

SET SCREW

1/2 x 1-1/2 cup-pt sq-hd set

1шт.

16

PO12729

HOOK

S-HOOK

1шт.

17

527209R11

LATCH ASSEMBLY

1шт.

18

ROPE, marker 1/4 in. sisal 16 ft., purchase locally

1шт.

18

ROPE, marker 1/4 in. sisal 40 ft., purchase locally

1шт.

19

527226R91

CHAIN, lift no. 2 Elwel machine chain twist link 26 ft. 0 in.

1шт.

19

462465R1

CHAIN, lift no. 2 Elwel machine chain twist link 30 ft. 0 in.

1шт.

20

527211R1

BUSHING

latch arm

1шт.

BOLT W/NUT, 1/2 x 2-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 17/32 x 1-1/2 x 11 ga

1шт.

21

PO2593

COLLAR ASSEMBLY, set

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

22

527212R1

ROD, spring

1шт.

23

PO189

SPRING, compression

1шт.

24

527213R1

EYE, swivel

1шт.

PIN, 1/8 x 1 cot.

1шт.

2751265R1

DECAL

PRODUCT GRAPHIC, International

1шт.

2754030R1

PRODUCT GRAPHIC

service model numbers

1шт.

Выбрано товаров: 47
